About this item
- Waterproof IP68 Voltage Converter Regulator DC 12V/24V to DC 5V 3A 15W.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Industry grade DC 12V to DC 5V converter, efficiency up to 96%.
- Anti-shock, and moisture-proof and has stronger durability.Certificates: CE/RoHS, 1 year , up to 100,000 hours.
- Note: It is recommended to use stable DC power for the input power supply If you use the pulsed DC power provided by the generator, please filter it with capacitor before connecting it to the converter. If you use solar panel to supply directly, please note that the open circuit voltage of the solar panel cannot exceed the maximum withstand voltage of the converter. The supply voltage should be within the rated voltage and always leave a certain margin.
Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC 12V to DC 5V converter, efficiency up to 96%.
4. Certificates: CE/RoHS, 1 year ,up to 100,000 hours.
5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Applications:
– Trucks
– Golf Carts
– Forklifts
– Buses
– Loaders
– Logging Vehicles
– Wind Power System
– Solar Power System
– Electromotor
– Telecommunications
– Boat and Yacht
– and so on..
Specifications:
* Input Rated Voltage: DC 12V
* Output voltage: DC 5V 3A
* Output Rated Power: 15W
* Efficiency: 92% ~ 96%
* Voltage Regulation: Less Than 1%
* Load Regulation: Less Than 2%
* Ripple(full load test): Less Than 5mV
* No Load Current: Less Than 10mA
* Total Size: 46*27*14mm(L*W*H)
* Hole Center Diameter: 53mm/ 2.08 inch
* Weight: 66g
Package included:

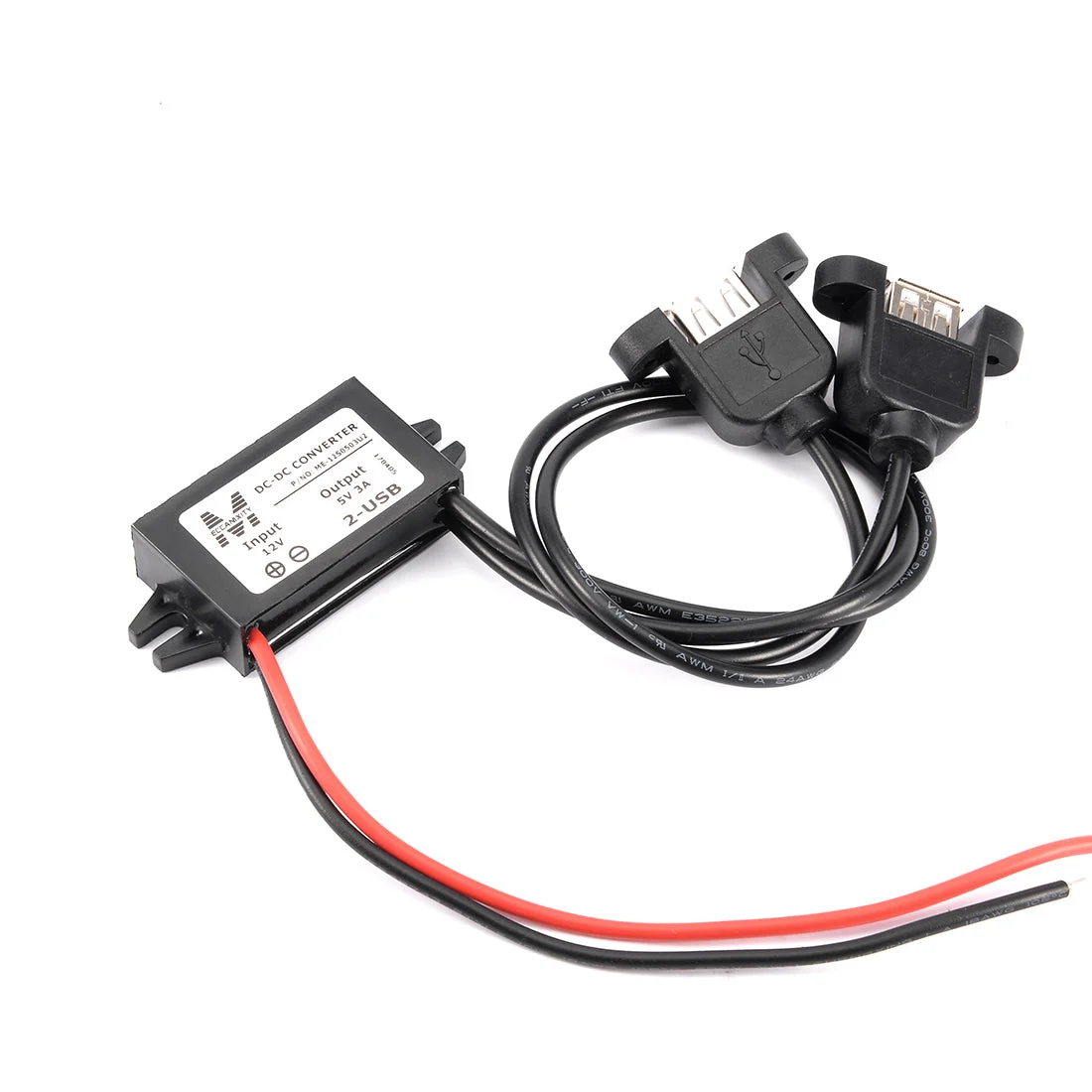

1 x DC 12V to DC 5V 3A Voltage Converter Regulator
Wire connnection:
Input: + red wire; – black wire
Note: Can not used long time Under the MAX. LISTED LOAD POWER.
