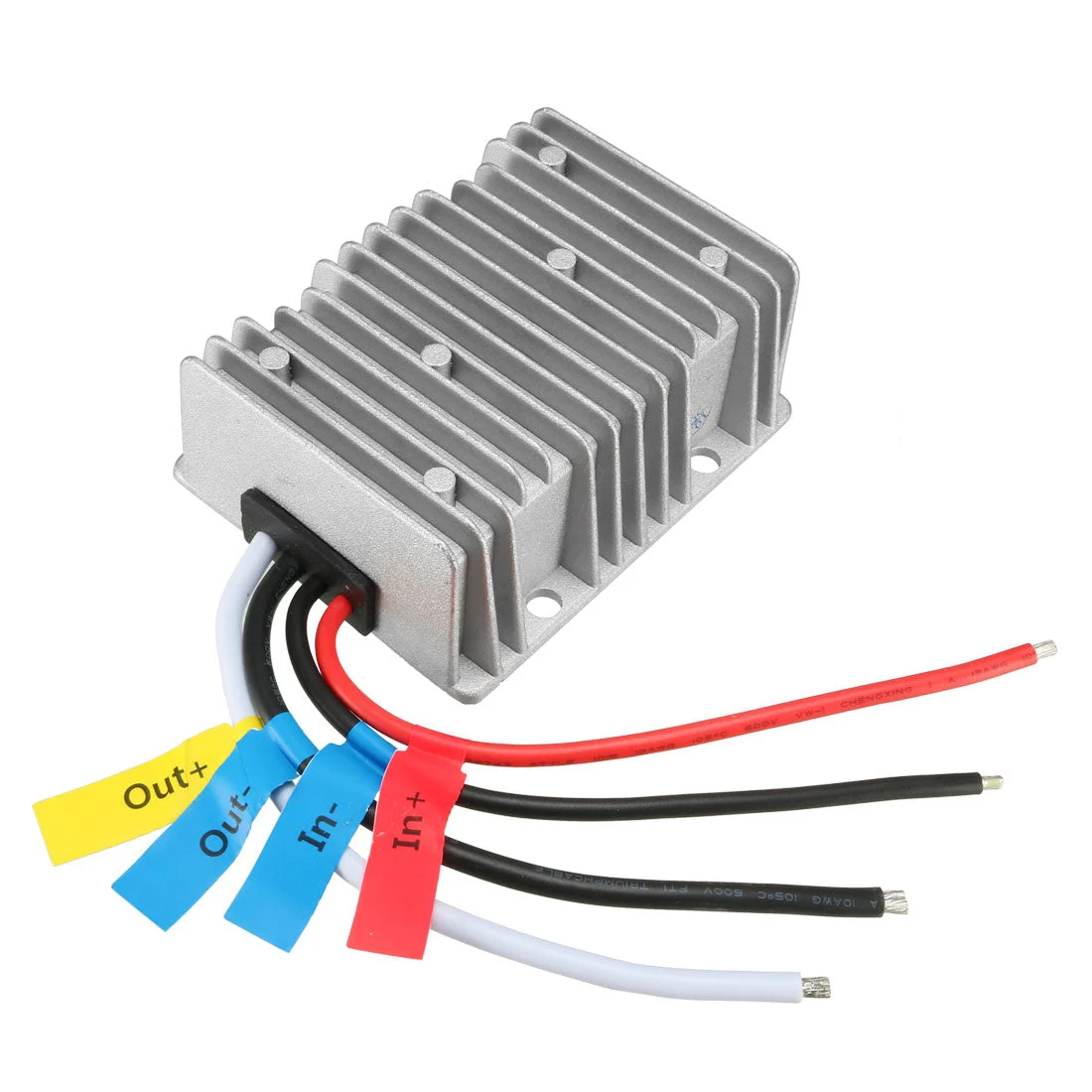

Uxcell New BIG-Size Voltage Converter Regulator DC 24V to DC 12V 40A 480W Transformer Waterproof

About this item

• Waterproof IP68 Voltage Converter Regulator DC 24V to DC 12V 40A 480W.
• Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
• Auto-recovery when device is back to normal operating; high transfer efficiency of 95% max..
• Die-cast aluminum shell, anti-shock, and moisture-proof and has stronger durability. Widely used in buses, large trucks, motor, solar generate electricity, the display screen of bus and taxi device.
• Notice: 1. Do not use the product with full load for a long time, which will cause the product to; 2. Please see the wire clearly before connecting. Be sure to wire according to the wire identification, otherwise, the converter may be damaged.

Features:
1. 100% full power and stable current output, non-isolated module.
2. Waterproof level IP68 and anti-shock protection, Ultra compact size, light weight.
3. Industry grade DC24V to DC 12V converter, efficiency up to 95%.
4. Die-cast aluminum shell, epoxy potting, cooling by free air convection.
5. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
Specifications:
* Input Rated Voltage: DC 24V
* Input Voltage Range: 19-35V DC
* Output voltage: DC12V 40A
* Output Rated Power: 480W
* Efficiency: 97% (half load); 95% (full load)
* Output Peak Power: 600W
* Ripple(full load test): Less Than 150mV
* Total Size: 100*80*39mm(L*W*H)
* Weight: 539g
Package included:
1 x DC 24V to DC 12V 40A Voltage Converter
Notice:
1. Do not use the product with full load for a long time, which will cause the product to.
2. Please see the wire clearly before connecting. Be sure to wire according to the wire identification, otherwise the converter may be damaged.
