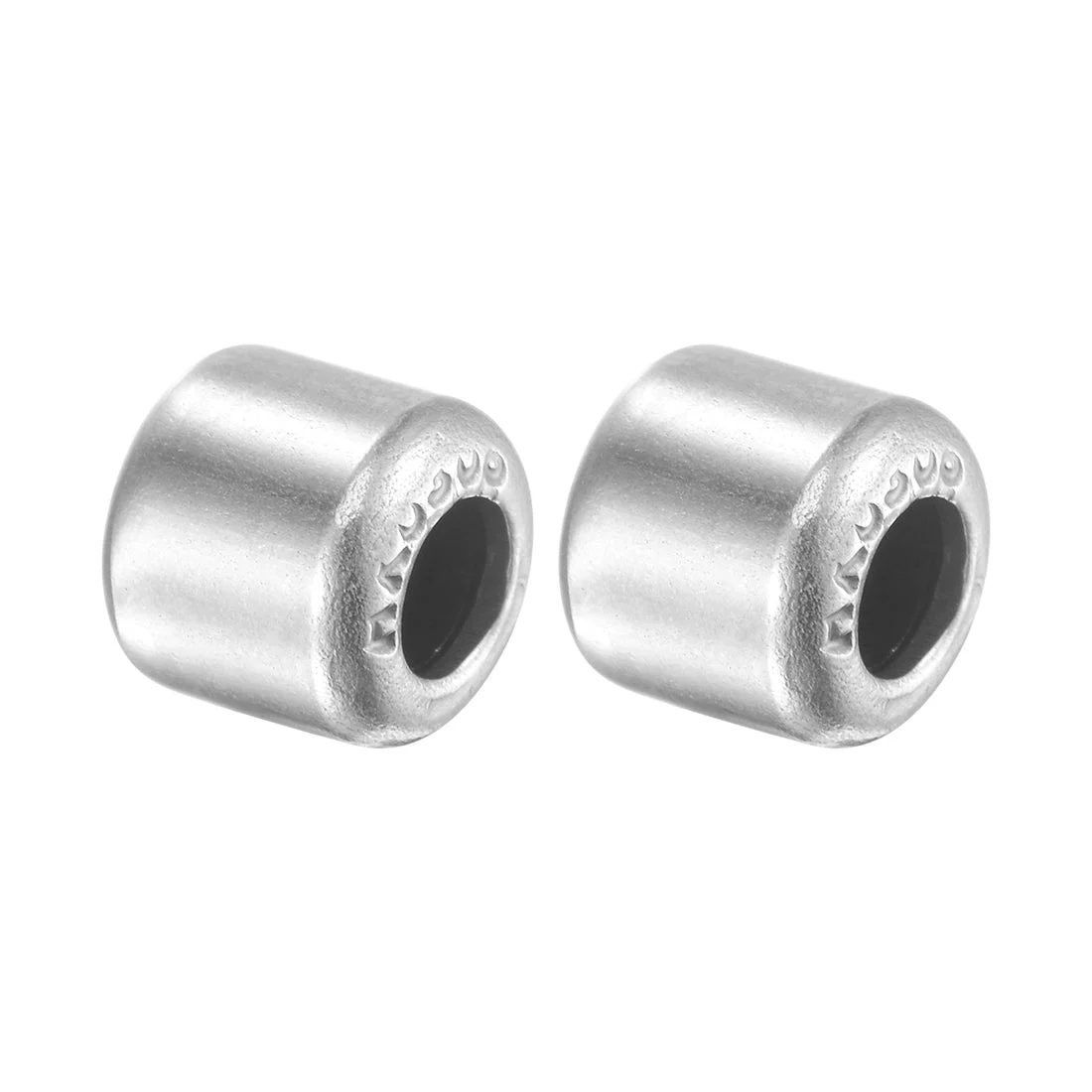

Uxcell Needle Roller Bearings, Open End, Stamping Steel Drawn Cup Metric

About this item

• [SIZE] – Inner Diameter = 10mm, Outer Diameter = 14mm, Width = 15mm
• [MATERIAL] – Steel Drawn Cup, Steel Cage, Chrome Steel Needle Rollers
• [FEATURES] – The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] – Dynamic Load Rating: 6.8kN, Static Load Rating: 8.8kN, Limit Speed: 24300RPM
• [APPLICATIONS] – They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Specification:

Drawn Cup Material: Steel

Cage Material: Steel

Needle Roller Material: Chrome Steel

Bore Diameter: 10mm

Outside Diameter: 14mm

Width: 15mm

Max. Rotational Speed: 24300rpm

Dynamic Load Rating: 6.8kN

Static Load Rating: 8.8kN

Package Contents: 2pcs

Description:

-They are compact bearings with high load carrying capacity and stiffness.
-Suitable for high dynamic loads or radial-limited installation. They are mounted in housings with a tight interference fit.
-Used in a variety of applications such as agricultural and construction equipment, pumps and compressors, and two-stroke engines.
Notice: Use a press or special tool (not a hammer) for installation, as the run out may cause local deformation or brittle breakage.
