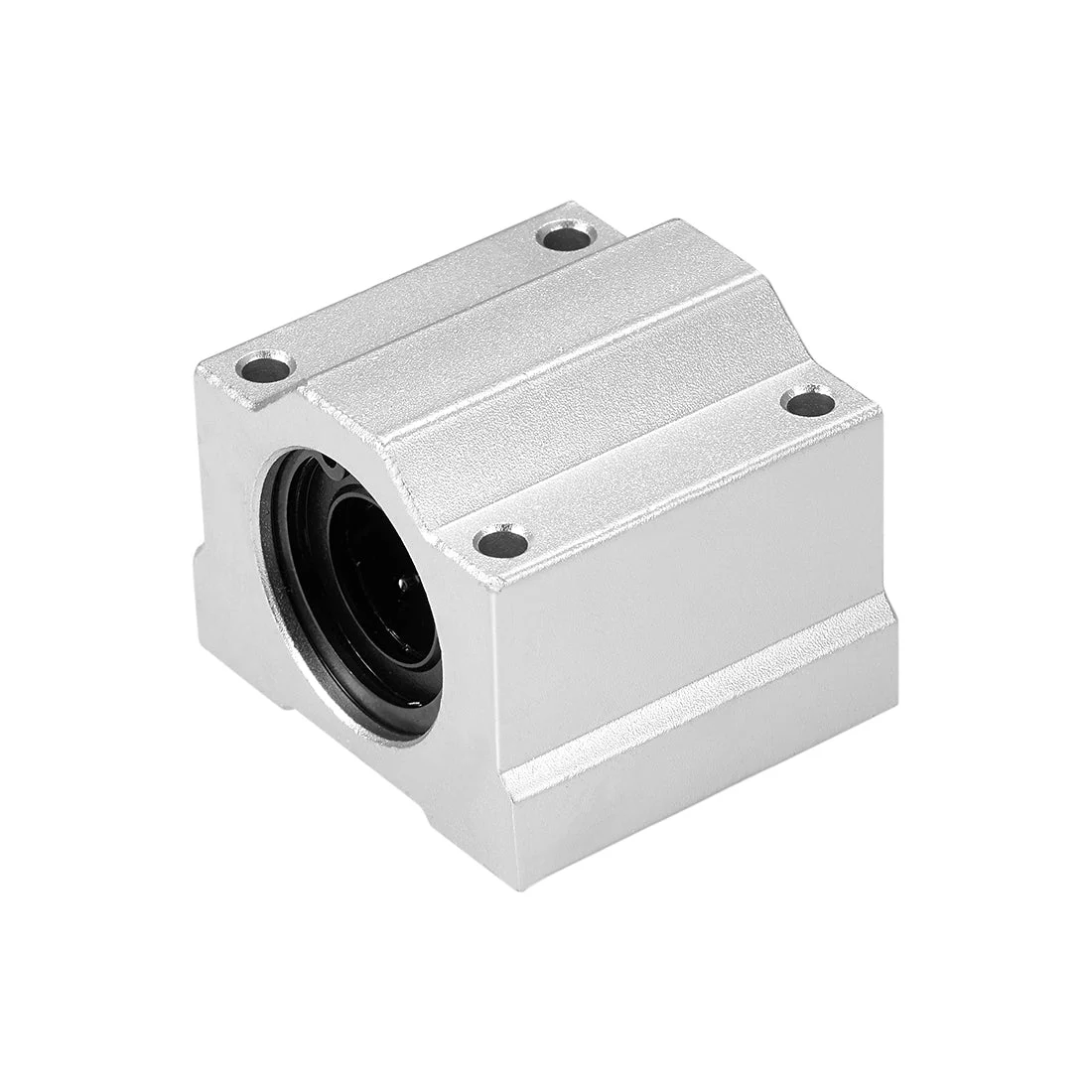

Uxcell Linear Ball Bearing Motion Slide Block Units

About this item

• Model: SCS6UU, 6mm Nominal Shaft Diameter
• Aluminium Alloy Linear Ball Bearing Slide Block Units
• Light-weight housing and Chromium Steel bearing ball, good abrasion resistance, high precision and good strength
• Smooth moving, low friction, high rigidity and long working life
• Suitable for kinds of electronic equipment/guide bar, and pillar

Description:

-SCSUU series Linear Ball Bearing Slide Block Units are complementary to linear ball bearings.

-They usually consist of a light-weight, aluminium housing to provide high strength and stiffness.

-Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

-Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

-It is great for 3D printer, CNC, and other applications.

Specification:

Unit No.: SCS6UU

Bearing No.: LM6UU

Slide Block Material: Aluminium Alloy

Bearing Ball Material: Chromium Steel

Cage Material: Nylon

Nominal Shaft Diameter (dr): 6mm

Slide Block Size: 30 x 25 x 18mm / 1.18″ x 0.98″ x 0.71″ (L*W*H)

Mounting Hole Size: M4

Mounting Hole Distance: 20 x 15mm / 0.79″ x 0.59″ (B*C)

Static Load Capacity (Cor): 0.265kN

Dynamic Load Capacity (Cr): 0.206kN

Package Content:

1 x Linear Ball Bearing
