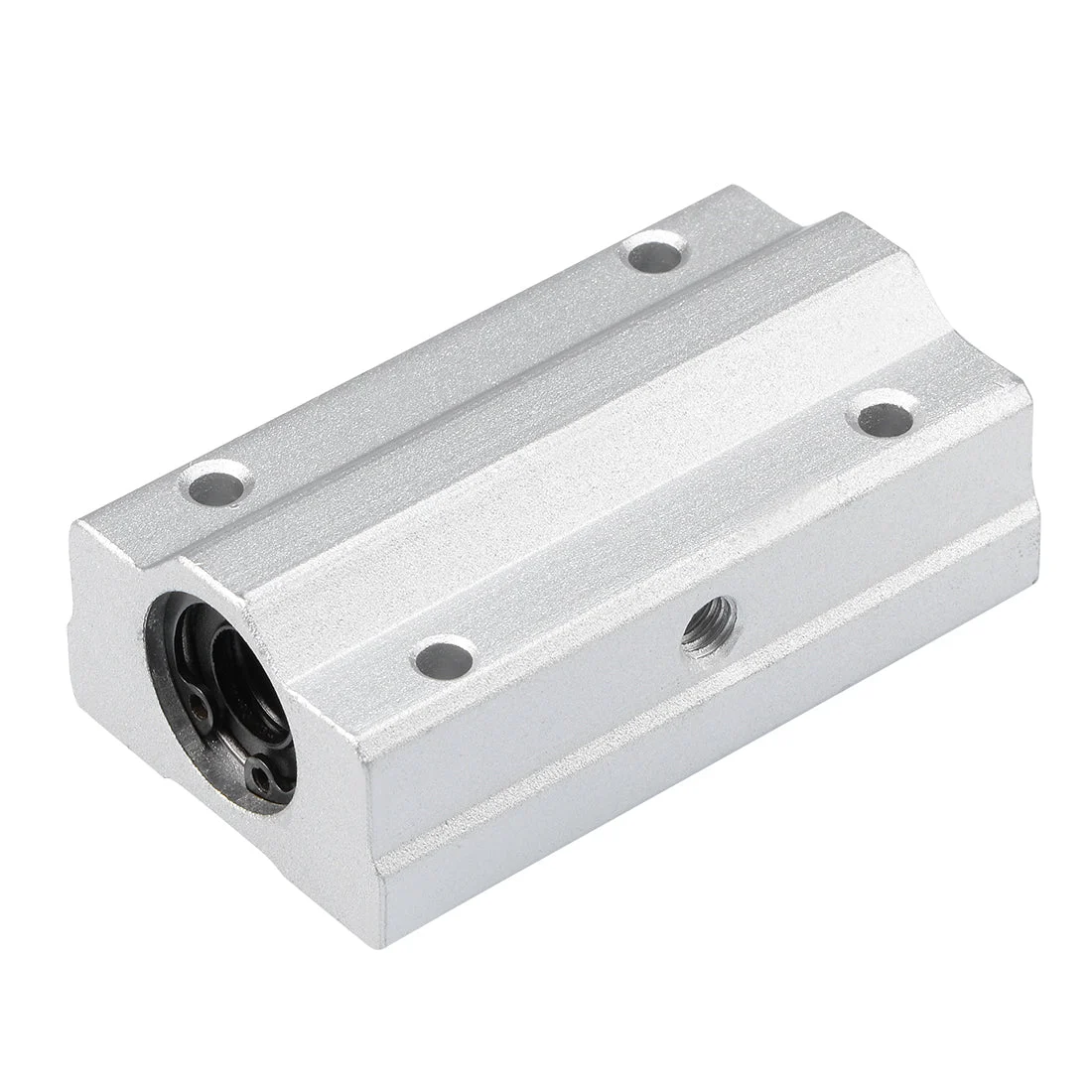

Uxcell Linear Ball Bearing Motion Slide Block Units Extra Long

About this item

• Model: SCS8LUU (Bearing No.: LM8LUU, Nominal Shaft Diamter (dr): 8mm)
• Aluminium Alloy Linear Ball Bearing Slide Block Units
• Light-weight housing and Chromium Steel bearing ball, good abrasion resistance, high precision and good strength
• Smooth moving, low friction, high rigidity and long working life
• Suitalbe for kinds of electronic equipment/guide bar, and pillar

Description:

-SCSUU series Linear Ball Bearing Slide Block Units complementary to linear ball bearings.

-They usually consist of a light-weight, aluminium housing to provide high strength and stiffness.

-Compact design with High load carrying capacity, Linear Motion Bearing Unit is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

-Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

-It is great for 3D printer, CNC, and other applications.

Specification:

Unit No.: SCS8LUU

Bearing No.: LM8LUU

Slide Block Meterial: Aluminium Alloy

Bearing Ball Meterial: Chromium Steel

Cage Meterial: Nylon

Nominal Shaft Diamter (dr): 8mm

Slide Block Size: 34 x 58 x 22mm / 1.34″ x 2.28″ x 0.87″ (L*W*H)

Mounting Hole Size: M4

Mounting Hole Distance: 24 x 42mm / 0.94″ x 1.65″ (B*C)

Static Load Capacity (Cor): 0.392kN

Dynamic Load Capacity (Cr):0.274kN

Package Content:

1 x Linear Ball Bearing
