Uxcell High Knob 3P 2 Position 1P2T SPDT Vertical Slide Switch, 0.5A 50V DC, 38 Pcs, 3 mm

About this item

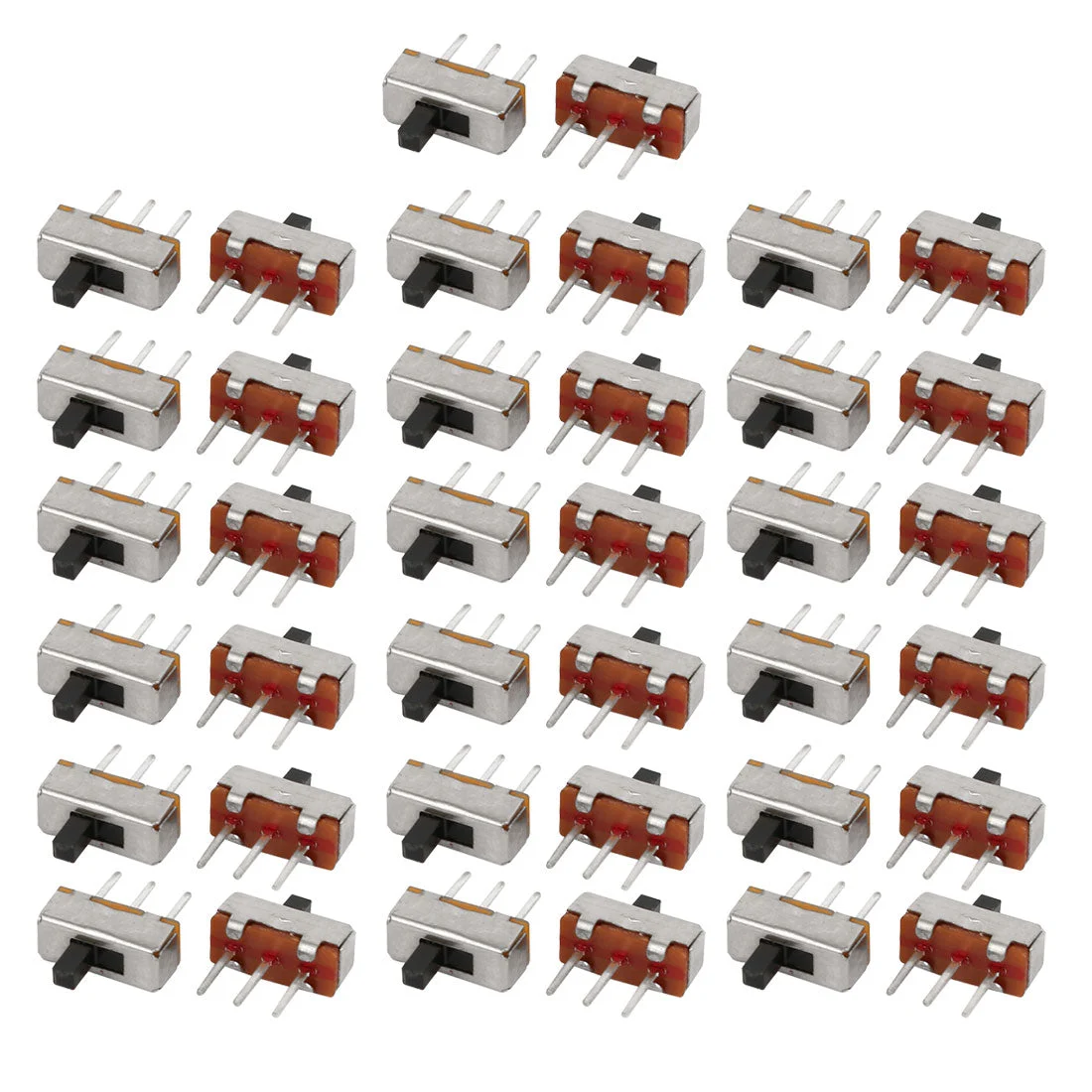

• Package Content: 38pcs x Slide Switch; Model: SS-12D00G3
• Type: 1 Pole 2 Throw; Contact Type: SPDT; Terminal Quantity: 3
• Working Power: 0.5A 50V DC
• Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 1 Pole 2 Position, Sliding Knob Actuator
• Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc

1.Features: Easy Structure, Mini Body, 3 Terminal, Vertical Handle, 1 Pole 2 Position, Sliding Knob Actuator.
2.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.
3.Also a great component for DIY.
Specifiation:
Package Content: 38pcs x Slide Switch
Material: Plastic, Electric Parts
Main Color: Brown, Silver Tone
Net Weight: 10g
Model: SS-12D00G3
Type: 1 Pole 2 Throw
Contact Type: SPDT
Terminal Quantity: 3
Working Power: 0.5A 50V DC
Contact Resistance: 30mOhm Max
Insulation Resistance: 100mOhm Min at 500V DC
Withstand Voltage: AC 500V for 1 min
Terminal Length: 3mm / 0.12 Inch
Terminal Pitch: 2.54mm / 0.1 Inch
Main Body Size(Not Include Terminal): 9 x 3.5 x 6mm / 0.35 Inch x 0.14 Inch x 0.24 Inch (L*W*H)
Overall Size: 8.5 x 3.8 x 7mm / 0.33 Inch x 0.15 Inch x 0.28 Inch(L*W*H)
Knob Size: 1.5 x 1.5 x 3mm / 0.06 Inch x 0.06 Inch x 0.12 Inch (L*W*H)
