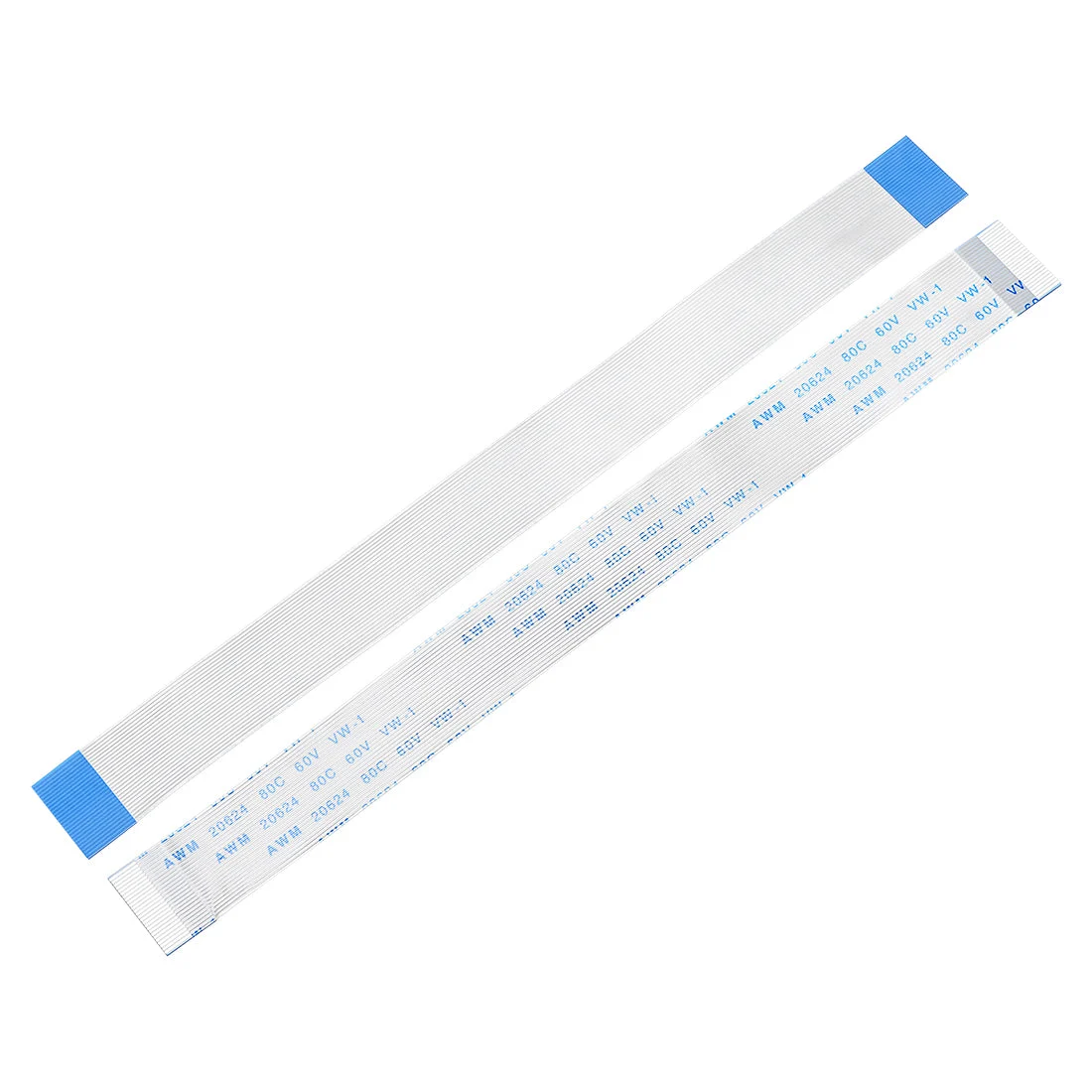

Uxcell Flexible Flat Cable, 0.5mm Pitch 150mm FFC Flexible Ribbon Cable 20Pcs (A Type)

About this item

• [SPECIFICATION]: 22pins; Dielectric Strength: 60V; Heat Resistance: 80℃. Length: 150mm;A type(Pin on the Same Side).
• [APPLICATION]: This flexible flat ribbon cable (FFC) is widely applicable to various electronic devices such as LCD TVs, car audio systems, DVD players, laptops, digital cameras, camcorders, printers, and copiers. Provides flexible connections for instruments and home appliances.
• [FEATURE]: FFC flexible flat cable, tinned copper conductor and PET insulation material, flexible and durable, can be easily bent in tight spaces without compromising. Each end of the FFC cable is reinforced with ribs for easy insertion or strain relief.
• [ADVANTAGE]: FFC flexible flat cable can ensure reliable signal transmission and minimize interference to maintain stable audio and video output.
• [EASY TO USE]: FFC flexible flat cable, easy to install, just connect the cable to the device’s circuit board, ensure the pins are properly aligned, and test the function to ensure a stable connection.

Description:

1.The term FFC(Flexible Flat Cable) usually refers to the extremely thin flat cable often found in high density electronic applications like laptops and cell phones.

2.The each end cable is reinforced with a stiffener to make insertion easier.

3.The stiffener makes the cable slightly thicker.

4.Applying to digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, etc.

Specification:

Product Name:Flexible Flat Cable

Model: AWM 20624 80C 60V (A type)

Pins: 22 Pins

Pitch: 0.5mm

Length: 150mm / 5.91″

Temperature: 80C

Voltage: 60V

External Material: PE

Color:Blue, Silver Gray

Total Size: 150mm x 11.5mm / 5.91″ x 0.45″(L*W)

Package Content :

20Pcs x Flexible Flat Cable
