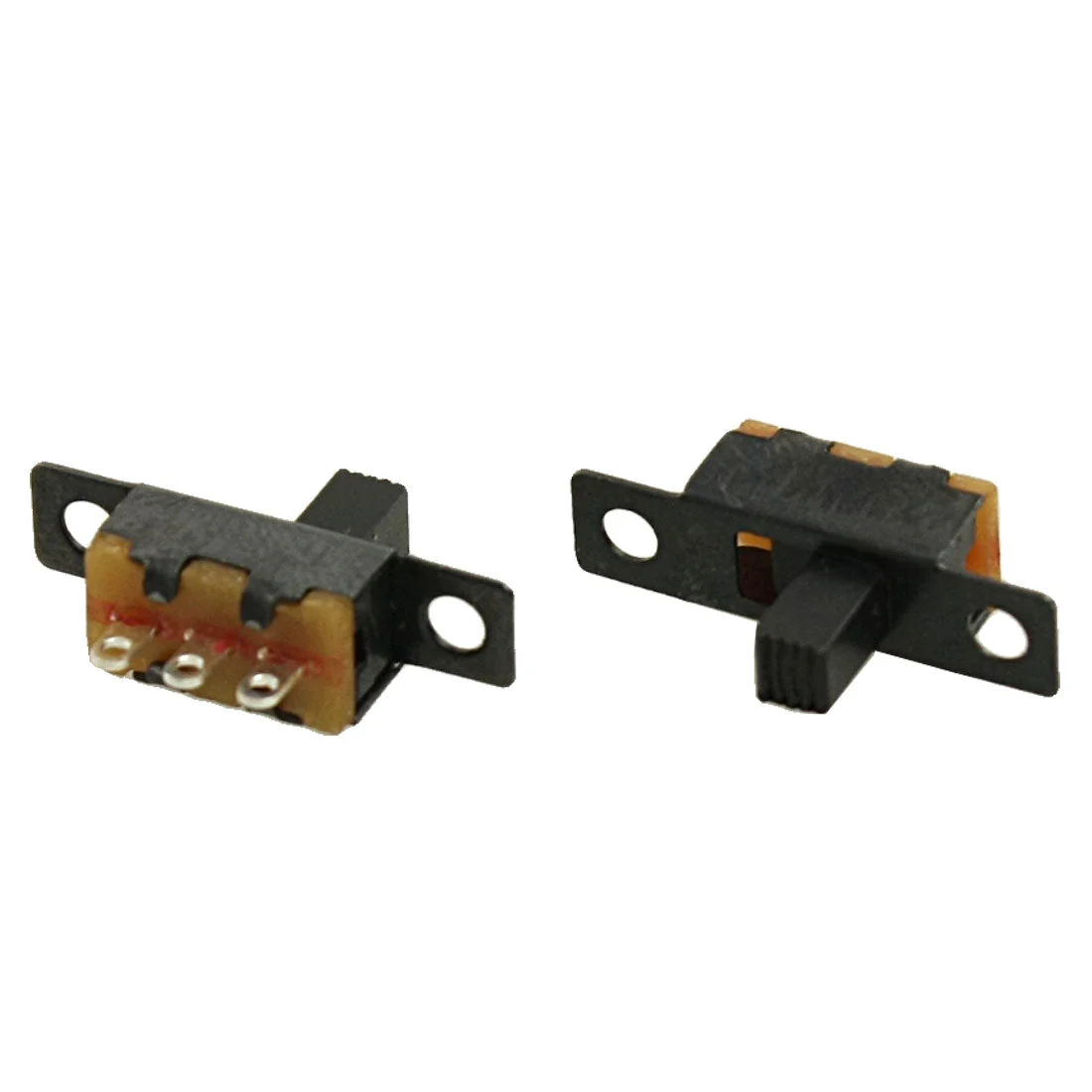

Uxcell 5 Pcs 50V 0.5A 3 Pin 2 Position On/OFF 1P2T SPDT Mini Slide Switch 3 Pin PCB DIY

About this item

• Product Name : Slide Switch;Model No. : SS12F15-G5;Type : 1P2T;Contact Type : 2 Positions, On/Off
• Pins Quantity : 3 Pins ( Single Row );Rating : DC 50V, 0.5A;Contacts Resistance : 30MΩ;Insulation Resistance : 100MΩ
• Minimum Load : DC 500V;Dielectric Strengths : AC 500V / 1 minute;Life Test : 10000 cycles/ minute;Overall Size : 19.8 x 5.6 x13mm/ 0.78″ x 0.22″ x 0.51″ (L*W*H)
• Pin Size : 3 x 1.5mm/ 0.12″ x 0.06″ (L*W);Pins Pitch : 1.4mm/ 0.055″;Knob Size : 3 x 3 x 5mm/ 0.12″ x 0.12″ x 0.2″ (L*W*H);Mounting Hole Dia : 2.2mm/ 0.087″
• Material : Plastic, Metal, Electronic Parts;Color : Black;Weight : 5g;Package : 5 x Slide Switch

• Slide Switch is for changing circuit by sliding the mini handle of the switch to control the circuit to be ON or OFF.
• The Slide Switch is widely used in the electric, sound equipment, fax, test instrument equipment, or other low voltage circuit electronic equipment.
• This Slide Switch is with welding pin type terminals design for easily welding onto the circuit.
• ON-ON type 2 Positions.
