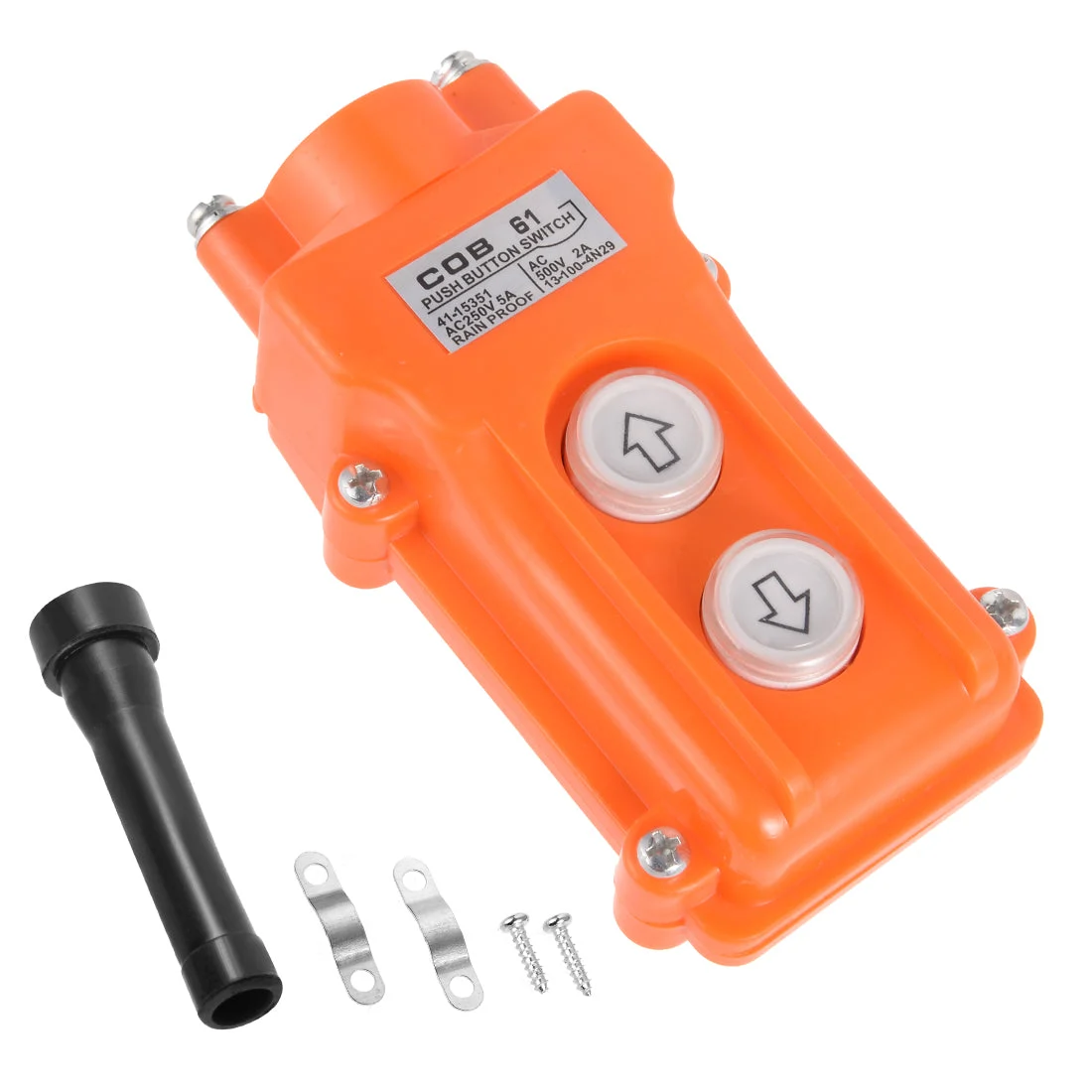

Uxcell 3pcs Hoist Crane Pendant Control Station Push Button Switch Up Down 2 Ways Orange

About this item

• Product Name: Hoist Crane Push button Switch; Push Buttons: 2 Ways: Up, Down Contact Type: /
• Model: COB-61; Operation Type: Self-resetting, control direction: up and down；Material: ABS,Metal
• Package Content: 3 x Hoist Crane Push button Switch;Ue & Ie: AC250V 5A; AC500V 2A
• Total Size: 13 x 7 x 5cm / 5.1″ x 2.8″ x 2″ (L*W*H); Jointing Sleeve Size: 10.5 x 1.4cm / 4.1″ x 0.6″ (L*D)
• Suitable for open-air, rain and snow, and more dust against the environment, such as remote control of cranes, electric hoist and other equipment used.

Features:

Model: COB-61

Operation Type: Momentary

Material: ABS,Metal

Ue/ Ie: AC250V 5A; AC500V 2A

Push Buttons: 2 Ways: Up, Down

Jointing  Size: 10.5 x 1.4cm / 4.1-inch x 0.6-inch (L*D)

Total Size: 13 x 7 x 5cm / 5.1-inch x 2.8-inch x 2-inch (L*W*H)

Descriptions:

Features: Up, Down,2 push buttons.

ABS housing, comes with a rubber jointing sleeve, waterproof.

pendant control station for Hoist and Crane.

Instructions for use:

1.Remove the end caps, install the sealing sheaths, and fasten them to the end faces of the buttons by screws

2.Remove the bottom cover, put all the control wires into the sealing sheath, and fasten them to the terminals of each button according to the electrical schematic.

3.Check or test the wiring is correct. If everything is normal, bundle the leads and fix them, and finally reinstall the bottom cover.
