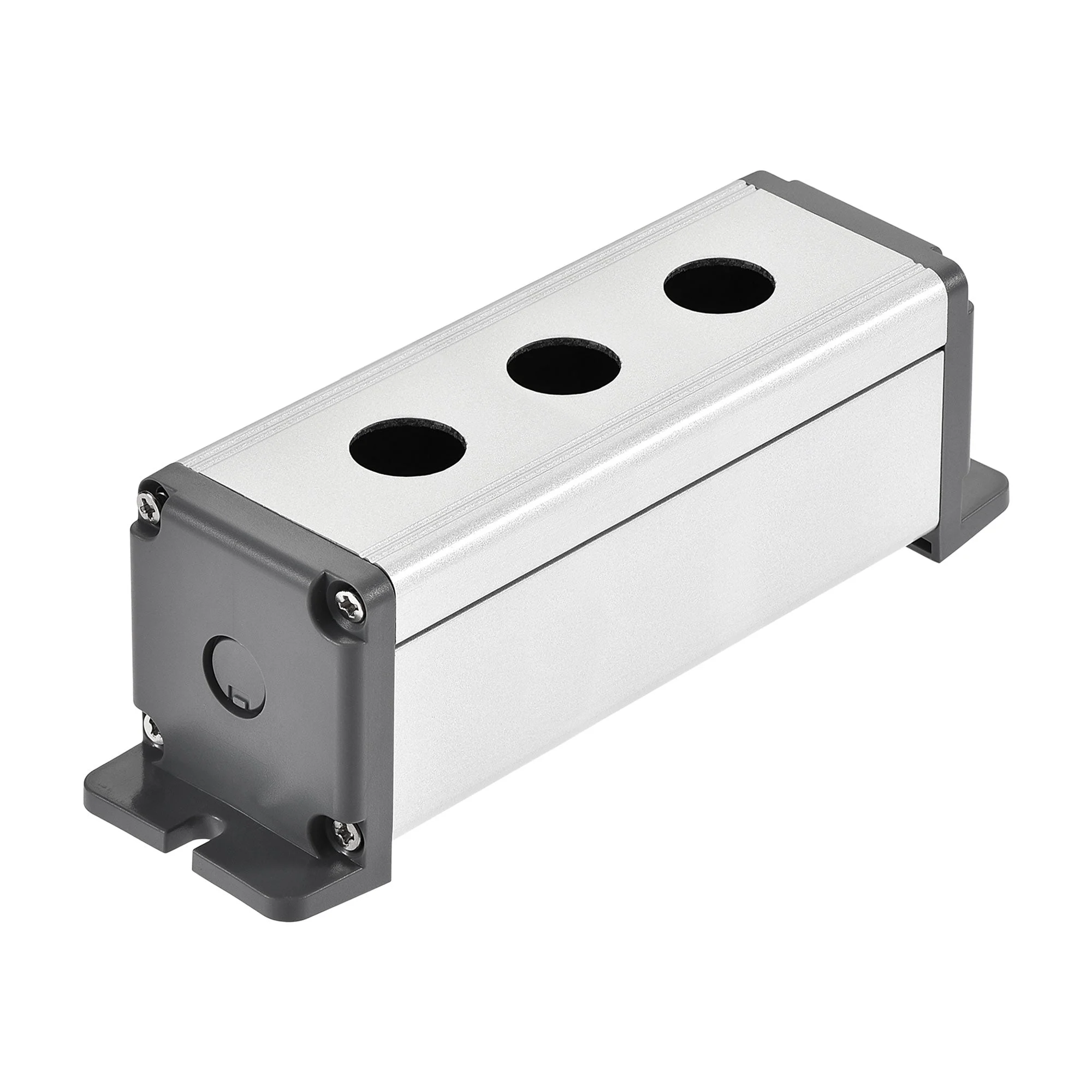

Uxcell 3 Holes 16mm Aluminum Switch Button Station Box with a PG7 Cable Gland and Mounting Base

About this item

• [PARAMETER] : Inner Size: 116x 31 x 42 mm / 4.57 x 1.22 x 1.65 inch (L*W*H); Button Hole Diameter: 16mm; Button Hole Count: 3; Wire Range for PG7 Cable Gland: 3mm – 6.5mm.
• [FEATURE] : A closed PG cable gland hole is reserved at the 2 ends of the push button station box, which can be opened according to your wiring demands.
• [MATERIAL] : Made of Aluminum material, stronger than those ABS push button switch boxes, as well as good appearance.
• [WATERPROOF DESIGN] : The up and down cover seams are designed to be waterproof.
• [APPLICATION] : The electronic box is widely used for mechanical equipment control, such as potentiometers, toggle switch, stop button, push button switch and so on.

Description:
The up and down cover seams are designed to be waterproof.
Made of Aluminum material, stronger than those ABS push button switch boxes, as well as good appearance.
Pre-open holes for your DIY projects, the holes could be compatible for 16mm switch button.
A closed PG cable gland hole is reserved at the 2 ends of the push button station box, which can be opened according to your wiring demands.
Application:
The electronic box is widely used for mechanical equipment control, such as potentiometers, toggle switch, stop button, push button switch and so on.
Specification:
Feature: with mounting base
Accessory: a PG7 cable gland
Button Hole Diameter: 16mm
Button Hole Count: 3
Closed Hole Diameter of 2 Ends: approx.12mm, compatible for PG7 cable gland
Wire Range for PG7 Cable Gland: 3mm – 6.5mm
Mounting Size of Base: 4.5mm
Thickness of Aluminum: 1.2mm
Inner Size: 116x 31 x 42 mm / 4.57 x 1.22 x 1.65 inch (L*W*H)
Overall Size: 155 x 45 x 50 mm / 6.10 x 1.77 x 1.97 inch (L*W*H)
Package Content: 1 x Push button Switch Box
