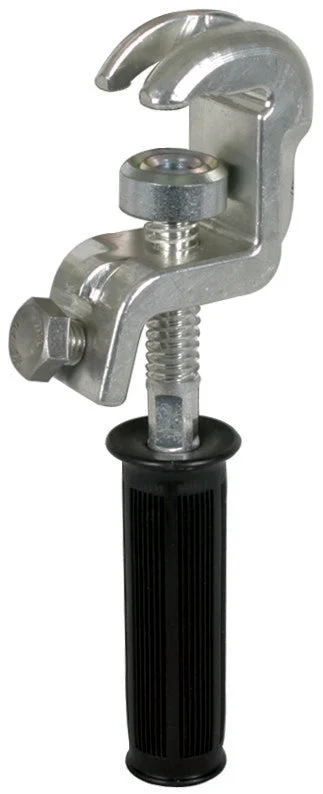

Universal Earth Clamp D 20/25mm T 18mm With Handle – 774234

This is a universal earthing clamp designed for connecting the earthing cable to fixed ball points, T pins, along with round and flat conductors. The clamp is compliant with EN/IEC 61230 (DIN VDE 0683-100) regulations. It features an anti-rotation PK1 element and is equipped with a plastic handle for easier handling. It aims to accommodate a wire section ranging from 16 to 120mm². The clamp offers a clamping range of up to 20mm and ensures protection from a maximum short-circuit current of 33.5kA. Its primary application is on the earthing side.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 20 mm to 20 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Application : Earth-side
