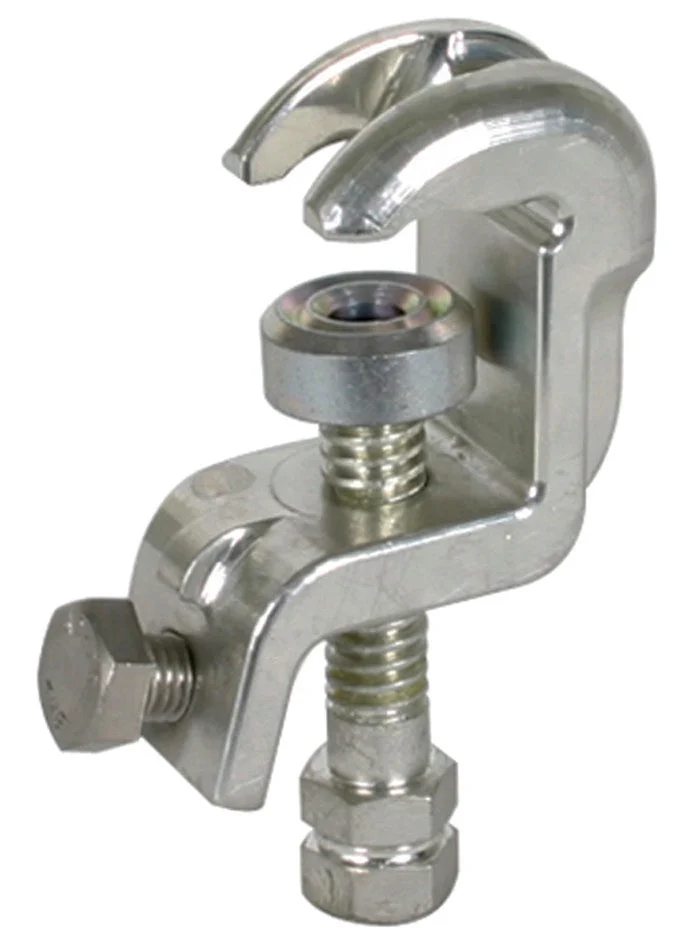

Universal Clamp DEHN UK 25 SK D 20/25mm T 15mm Hexagon Shaft – 773034

This is a universal clamp with a hexagon shaft. It is designed for use as a phase or earth connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100). It is suitable for fixed ball points, fixed T points, flat and round conductors. It is to be used for attaching to earthing and short-circuiting devices. The clamp is equipped with a PK1 anti-rotation element. It is safe for a maximum short-circuit current of 33.5kA and is appropriate for wire cross-sections of 16 – 120mm². The clamp range is 20mm with a ball-joint connection of 25mm. It comes with twist protection and the operating rod is secured with a hexagon.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 20 mm to 20 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with hexagon
Application : Phase-side
