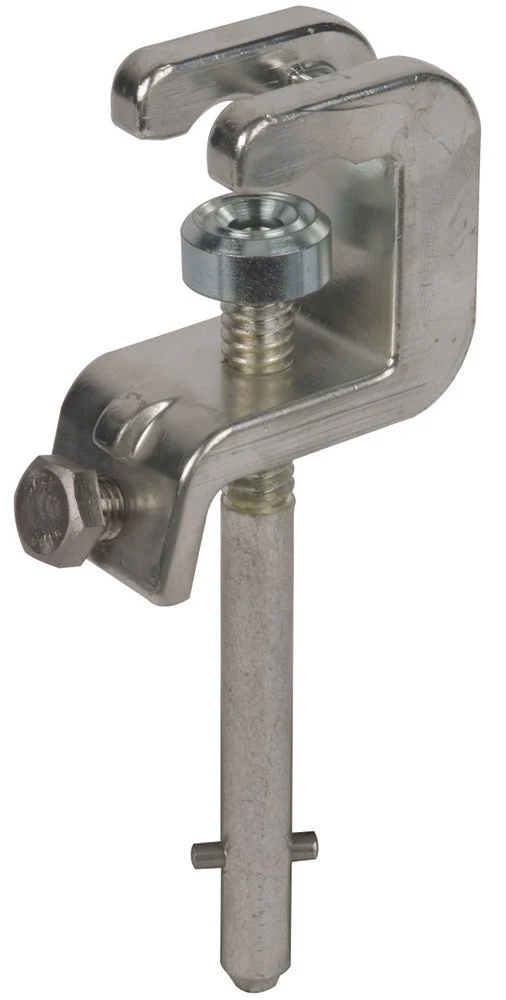

Universal Clamp D 25/30 T 18mm Rd/Fl 30mm With T Pin Shaft Long – 773331

This is a universal clamp with a long T pin shaft. It is designed for use as a phase or earth connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100) standards. Suitable for fixed ball points, fixed T points, flat and round conductors. It is effective for connecting the phase cables of both earthing and short-circuiting devices. The maximum short-circuit current is 33.5kA, with a cable cross-sectional area of 16 – 120mm² and a clamping range of 30mm. Features a 25mm ball-lock point connection method, an APK1 anti-rotation element and is equipped with a handlebar spindle fixed with a cross pin for added safety.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Clamping range (mm) : 30 mm to 30 mm
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
