About this item

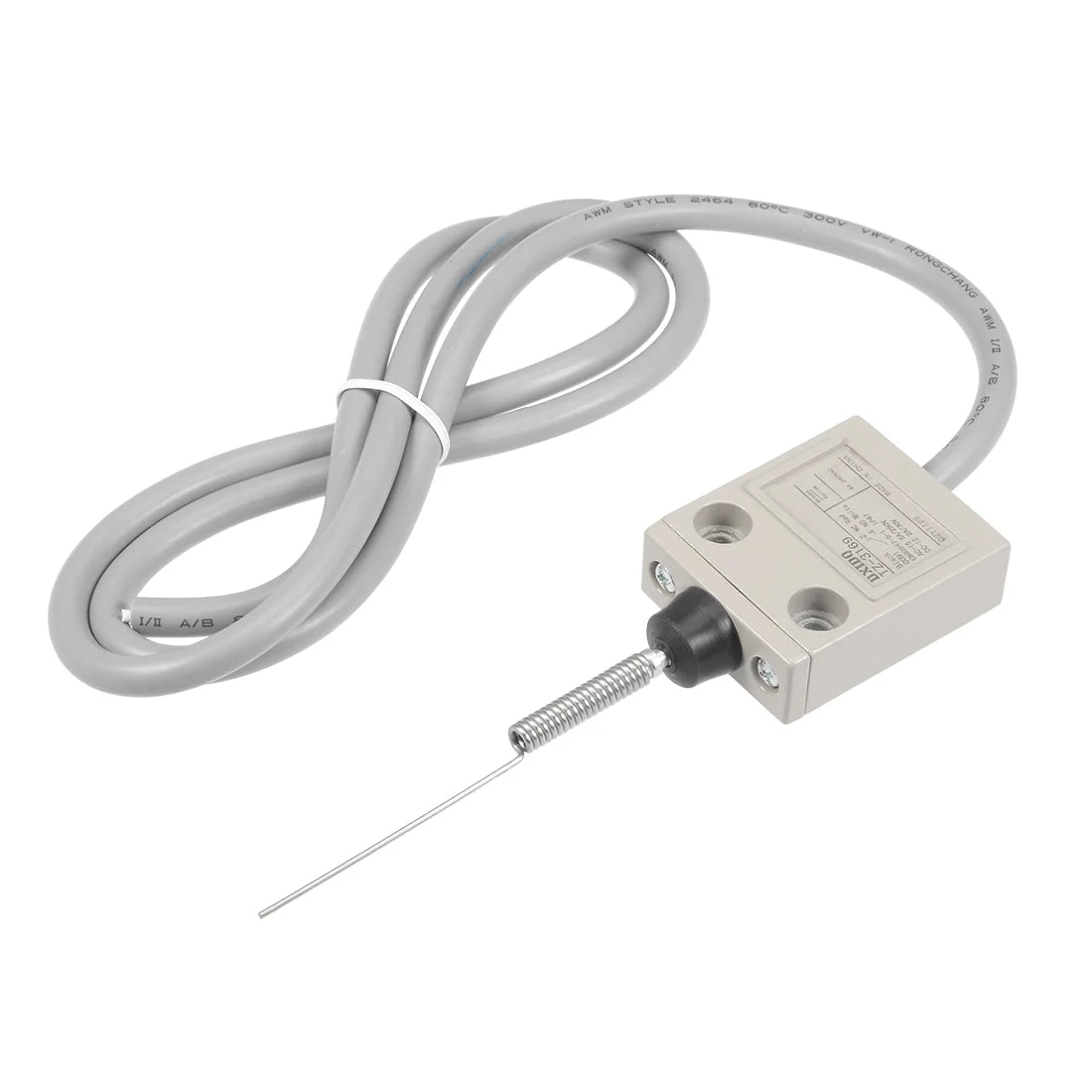

- Model: TZ-3169; Cat Whisker Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Prewied, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification:
Product Name: Limit Switch
Model: TZ-3169
Actuator Type: Cat Whisker Type
Rated Voltage:
AC-15: 3A/5A 250V
DC-12: 2A 30V
Contact Configuration: COM-Black, NC-Red, NO-White, E-Green/Yellow
Wire Length: ~1M
Body Size: 48.5 x 40 x 16mm (L*W*T)
Mounting Hole Size: 5.2mm (D)
Mounting Hole Distance: 25mm
The coil spring can be operated in any direction except the axis direction.
The use of the coil spring is ideal for that are not uniform in size or direction.
Operating Characteristics:
OF max.: 150gf (1.47N)
PT max.: 15°
Description:
- Double circuit limit switch with build-in double reed mechanism.
- Aluminium alloy shell, strong and hightly rigid construction.
- Smooth operation with highter OT.
- Prewired design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
