About this item

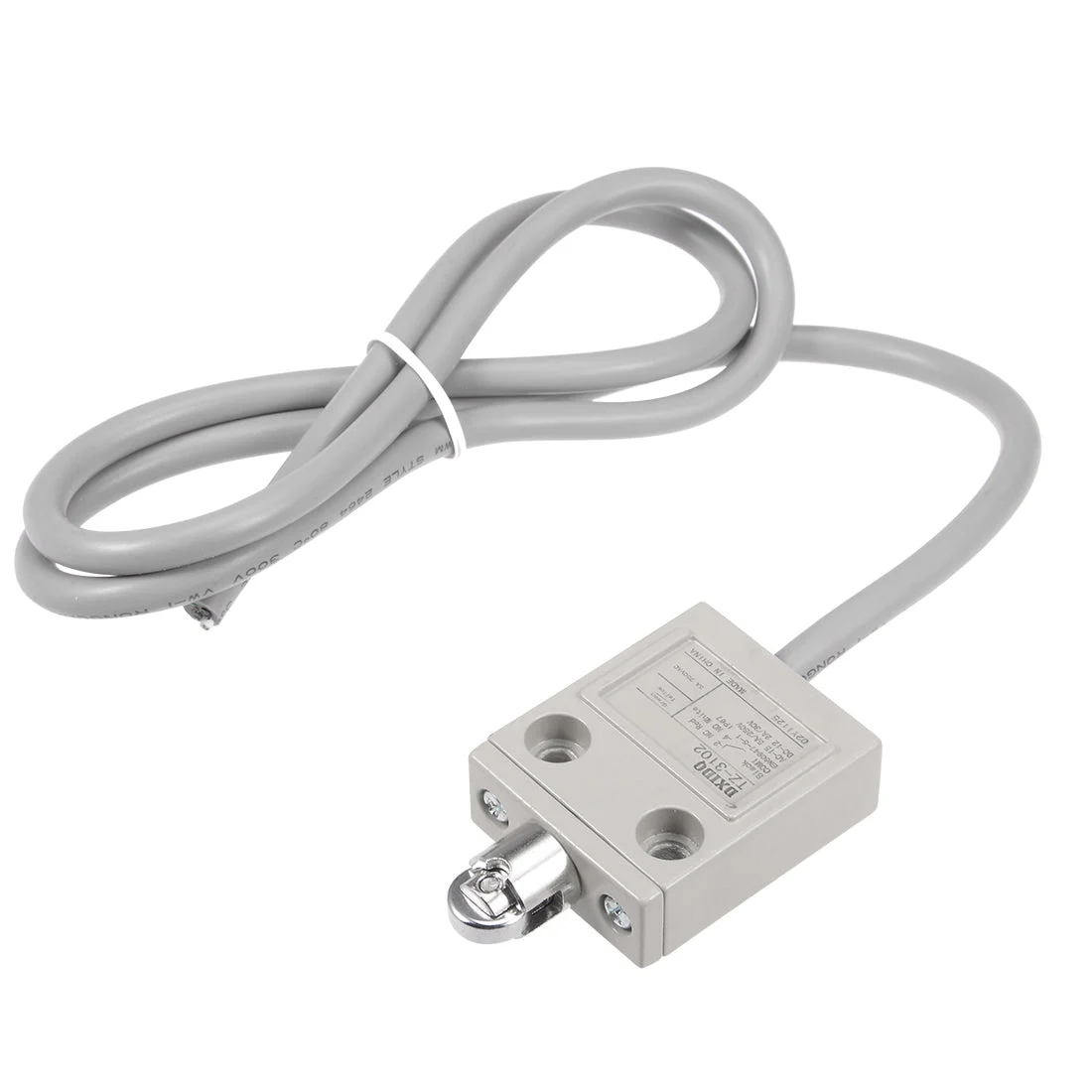

- Model: TZ-3102; Roller Plunger Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Prewied, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification:
Product Name: Limit Switch
Model: TZ-3102
Actuator Type: Roller Plunger Type
Rated Voltage:
AC-15: 5A 250V
DC-12: 2A 30V
Contact Configuration: COM-Black, NC-Red, NO-White, E-Green/Yellow
Wire Length: ~1M
Body Size: 48.5 x 40 x 16mm (L*W*T)
Mounting Hole Size: 5.2mm (D)
Mounting Hole Distance: 25mm
The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.
Position detection accuracy is high.
Operating Characteristics:
OF max.: 1200gf (11.77N)
RF min.: 450gf (4.41N)
PT max.: 1.8mm
OT min.: 3mm
MD max.: 0.2mm
OP: 28.5+/-1mm
Description:
- Double circuit limit switch with build-in double reed mechanism.
- Aluminium alloy shell, strong and hightly rigid construction.
- Smooth operation with highter OT.
- Prewired design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
