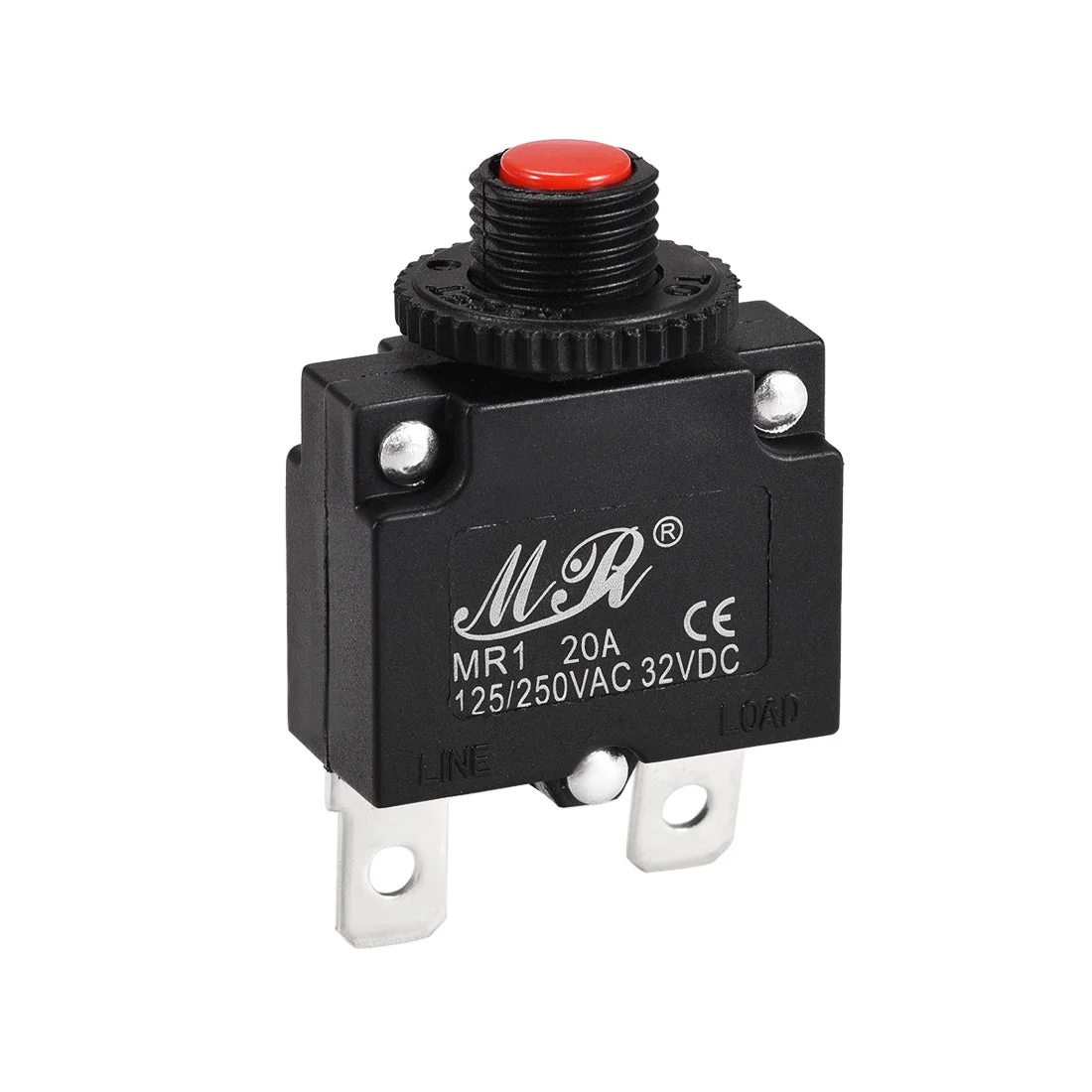

Thermal Circuit Breaker 20 Amp Push Button Reset Overload Protector 125/250V AC 32V DC with Quick Connect Terminal

About this item

• Power rating: 20A (amp). For operation up to 32V DC or 125/250V AC
• When the load exceeds the rated current, the thermal circuit breaker reset button will cut off the circuit to protect the line
• Can be reset after a disconnect over a period of time and press the reset switch to use it again
• Not designed for push on or push off manual switch operation, but the button pops out at overload and is reset by pushing back in
• Circuit breaker reset button can be widely used in automotive, industry and ocean industry

Description:

1. When the load exceeds the rated current, the thermal circuit breaker reset button will cut off the circuit, and plays a role in protecting the line.

2. This thermal circuit breaker can be reset after a disconnect over a period of time, then you can press the reset switch to use it again.

3. Compact design enables high density circuit protection configuration. Made of durable plastic.

4. This replacement circuit reset breaker can be used in applications requiring protection up to 20 amps.

5. Circuit breaker reset button can be widely used in automotive, industry and ocean industry.

Specifications:

Current Rating: 20A

Voltage: 125/250V AC 32V DC

Type: Push-button Reset

Total Size: 28 x 13 x 46mm / 1.1″ x 0.51″ x 1.81″ (L*W*H)

Material: Plastic

Package Included:

1 x Thermal Circuit Breaker
