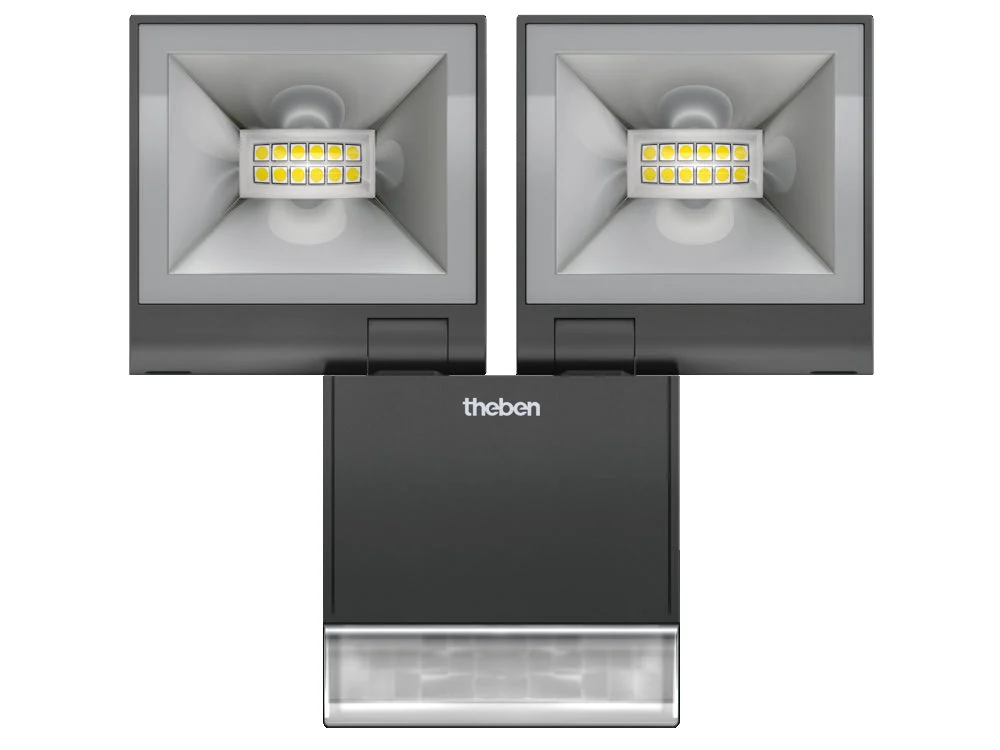

Theben TheLeda S downlight/spotlight/spotlight, luminous flux 1680lm, effective luminous flux according to IEC 770lm, temperature 3000K, light color white, system power 20W, housing black, degree of protection (IP) IP55, with motion sensor, type of dimming other, with light sensor.
Specifications
Suitable for surface mounting : Yes
Suitable for built-in mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : No
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Rotating and swivelling
With movement sensor : Yes
With light sensor : Yes
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 0
Lamp holder : None
Material : Plastic
Surface protection : Lacquered
Color housing : Black
Material cover : Plastic, transparent
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 230 V to 230 V
LED nominal current at constant current (mA) : 0 mA to 10 mA
Type of control gear : Not required
With control gear : Yes
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : Yes
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
Reflector : High-gloss
Light distributor : Reflector
Light sharing : Symmetric
Beam angle : Wide beam 41-80°
Light outlet : Direct
Energy efficiency class : A
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Total harmonic distortion : 27
Degree of protection (IP) : IP55
Degree of protection (NEMA) : 4
Impact strength : IK04
Protection class : I
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 45 °C
Max. system power (W) : 20
Colour of light : White
Colour temperature (K) : 3000 K to 3000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 1680 lm to 1680 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 770
Power factor : 0.95
Width (mm) : 50
Height/depth (mm) : 160
Length (mm) : 167
Type of wiring : Ending
Number of poles : 4
Conductor cross section (mm²) : 2.5
Connectable conductor cross section (mm²) : 0 mm² to 2.5 mm²
Connection type : Screwed terminal
Luminaire with limited surface temperature, sign “D“ : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 70
Photobiological safety according to EN 62471 : RG0
Covering of the luminaire with thermally insulating material possible : No
Color consistency (McAdam ellipse) : SDCM6
