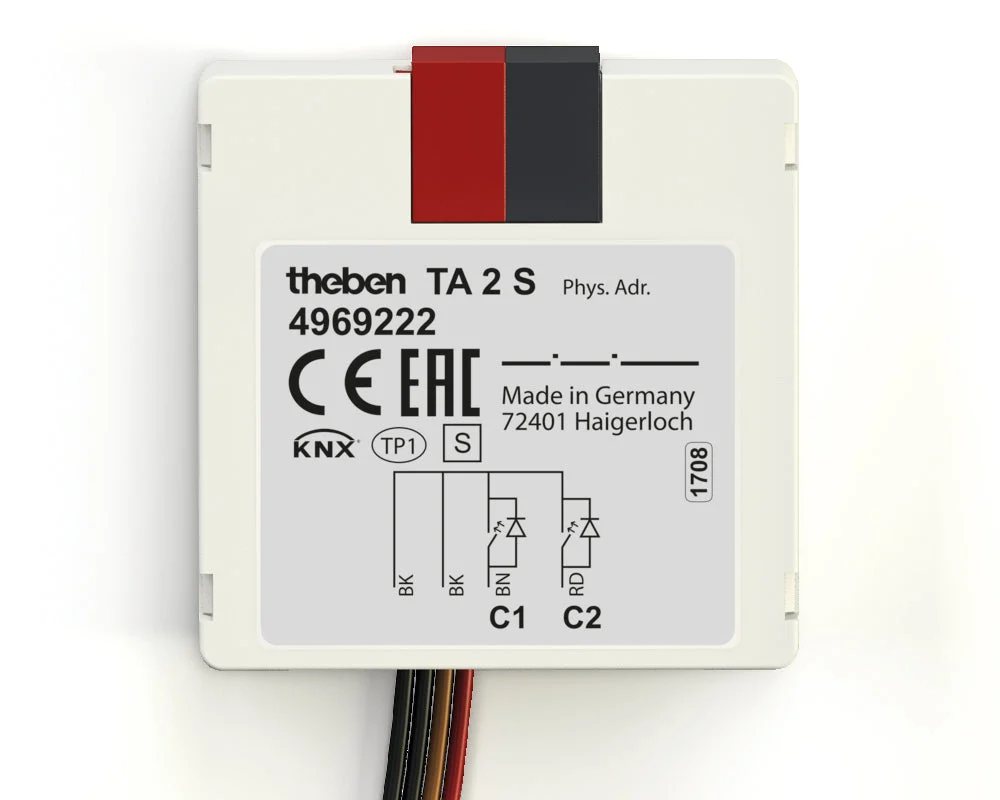

Theben TA Binary Input Bus System – 4969222

Theben TA binary input bus system, bus system KNX, flush mount, 2 inputs, degree of protection (IP) IP20, bus connection incl., external signal voltage necessaryij, input voltage 5V, LED control, min. Depth of flush mount box 13mm, type of input voltage AC/DC.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 0
With bus connection : Yes
Bus module detachable : No
LED controlling : Yes
With LED indication : No
Number of inputs : 2
Input voltage (V) : 5 V to 5 V
Type of voltage (input voltage) : AC/DC
External signal voltage necessary : Yes
Degree of protection (IP) : IP20
Min. depth of built-in installation box (mm) : 13
