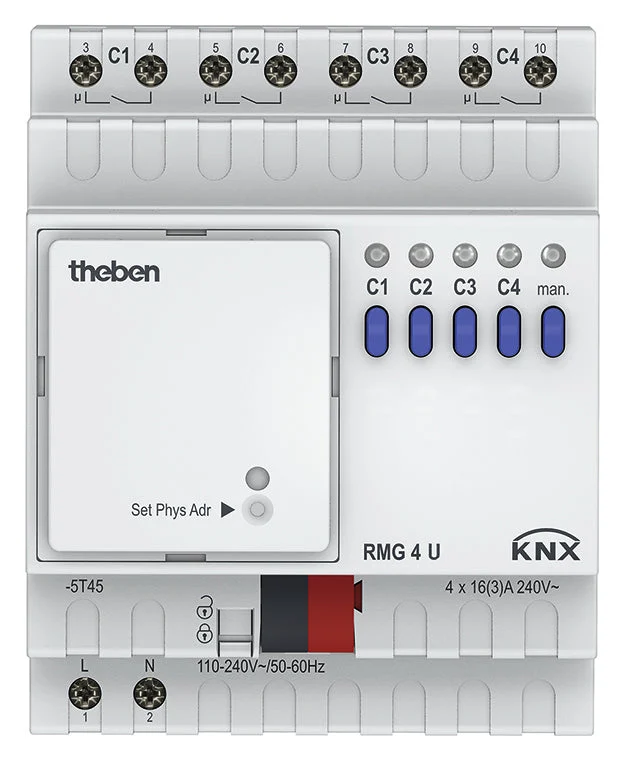

KNX switching actuator with relay outputs for 4 switching channels, expandable with RME 4 U up to a maximum of 12 channels or with other MIX extension modules. DIN rail mounting, width 4 TE, base module and bus coupler are mechanically decoupled and can be exchanged independently of each other.
LED indication for each channel, manual operation with status display (also without bus voltage), contact functions (make/break) and participation in central objects such as continuous on, continuous off, central switching and scene storing/calling.
Other functions include:
- on/off
- impulse
- on/off-delay
- staircase-time switch with pre-warning according to DIN 18015-2
- logical functions: blocking and releasing
Feedback object for each channel, central objects with and without priority, scene calling and storing (object), scene object for each channel.
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 0
Max. switching power (W) : 3680
Max. switching power LED (W) : 600
Output power (W) : 3680
Suitable for C-load : No
Max. number of switching contacts : 4
Max. switching current (A) : 16
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : Yes
Bus module detachable : Yes
Modular expandability : Yes
Degree of protection (IP) : IP20
