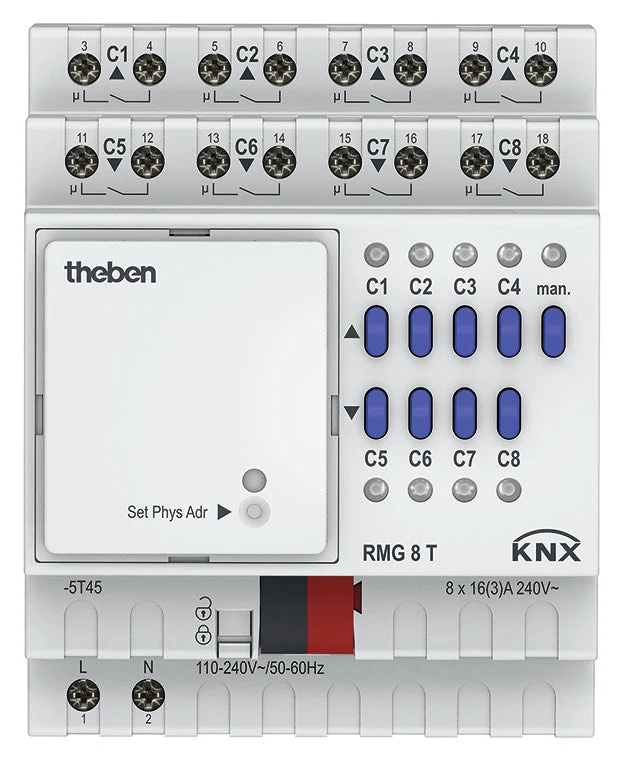

Switching/blind actuator, basic module, with relay outputs for 8 switching channels or 4 blind channels, can be extended with RME 8 T or with other MIX expansion modules, DIN rail mounting width 72 mm, device and bus coupling can be replaced independently of each other.
Switching state display with LEDs for each channel, manual operation on the device (even without bus voltage), contacts (make/break) and participation in central function as:
- continuous on,
- continuous off,
- central switching,
- scenes,
- store/recall scenes,
Switching functions:
- on/off,
- pulse,
- on/off delay,
- staircase lighting,
Logical functions:
- blocking,
- AND,
- release,
- OR.
Feedback object for each channel, central objects with and without priority, recall and store scenes (object), scene object for each channel, 16A/250V cos phi = 1
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Local operation/hand operation : Yes
With LED indication : Yes
Max. switching power LED (W) : 600
Output power (W) : 3680
Suitable for C-load : No
Max. number of switching contacts : 8
Max. switching current (A) : 16
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : Yes
Bus module detachable : Yes
Modular expandability : Yes
Degree of protection (IP) : IP20
