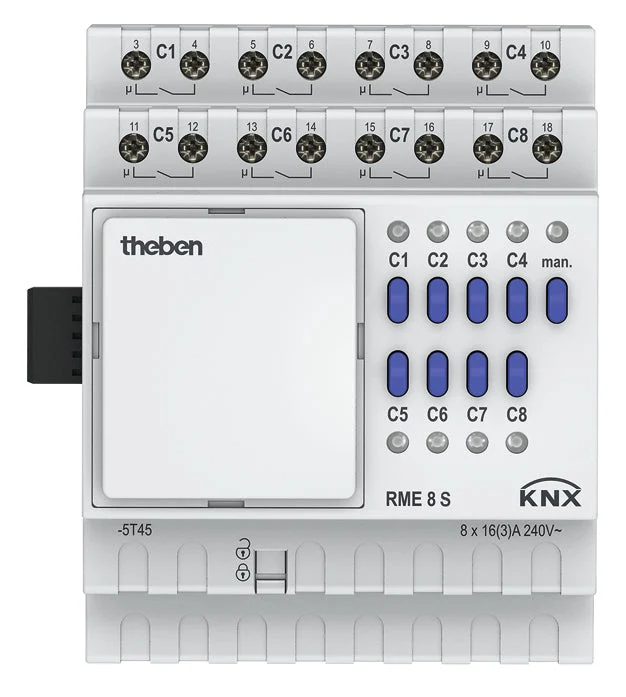

Theben RME Switching Actuator Bus System – 4930225

Theben RME switching actuator bus system, DRA (DIN-rail adapter), bus system KNX, max. Number of switching outputs 8, operating voltage (measurement voltage) 110 – 230V, protection rating (IP) IP20, width in module units 4, bus module removable, manual operation, max. Switching current 16A.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Local operation/hand operation : Yes
With LED indication : Yes
Max. switching power LED (W) : 600
Output power (W) : 3680
Suitable for C-load : No
Max. number of switching contacts : 8
Max. switching current (A) : 16
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : No
Bus module detachable : Yes
Modular expandability : Yes
Degree of protection (IP) : IP20
