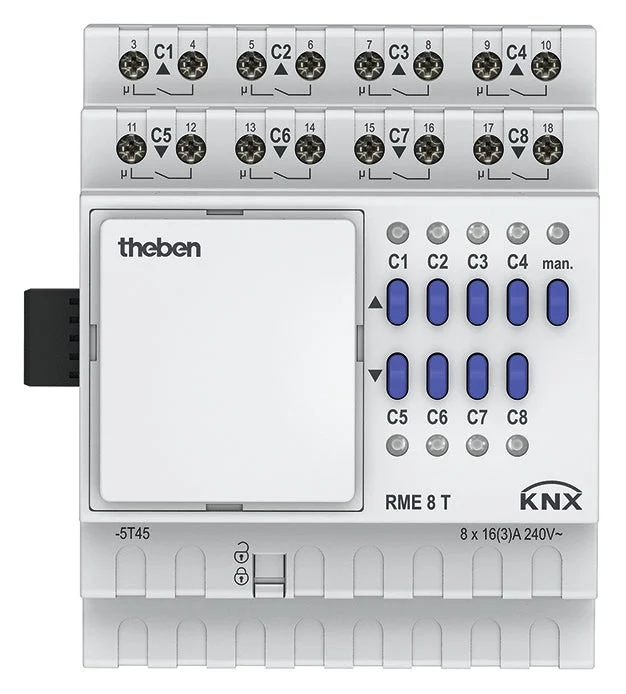

EIB/KNX switch-/blind actuator, expansion module, with relay outputs for 8 switching channels or 4 blind channels, expandable with RME 8 T or with other MIX expansion modules, DIN-rail mounting, width 72 mm, device and bus coupling can be replaced independently from each other. Switch state display with LEDs for each channel, manual operation on the device (also without bus voltage), contacts (make/break) and participation in central function like continuous on, continuous off, central switching, scenes, saving/calling scenes, switching functions: on/off, pulse, on/off delay, staircase lighting, logical functions: blocking, AND, releasing, OR.
Feedback object for each channel, central objects with and without priority, calling and saving scenes (object), scene object for each channel, 16A/250V cos phi = 1.
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Local operation/hand operation : Yes
With LED indication : Yes
Max. switching power LED (W) : 600
Output power (W) : 3680
Suitable for C-load : No
Max. number of switching contacts : 8
Max. switching current (A) : 16
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : No
Bus module detachable : Yes
Modular expandability : Yes
Degree of protection (IP) : IP20
