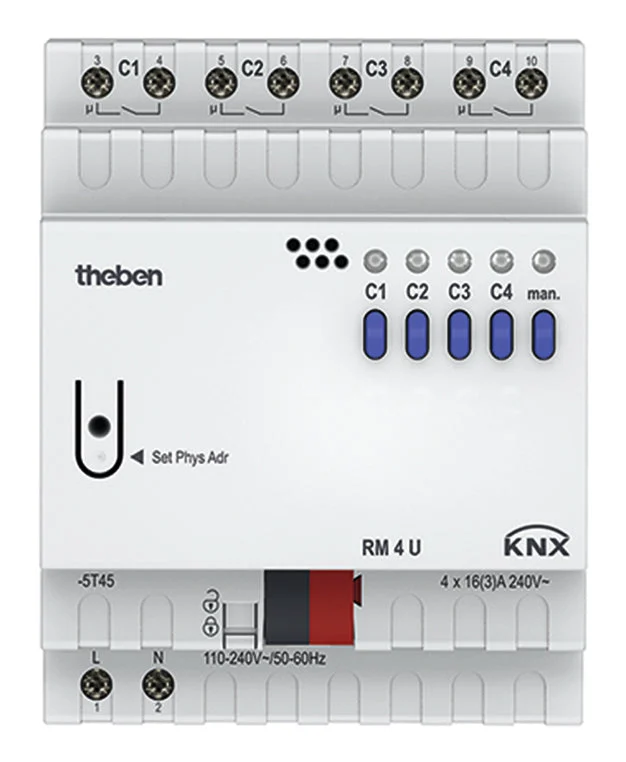

EIB/KNX switch actuator, with relay outputs for 4 switch channels, DIN-rail mounting, width 72 mm, LED switch status display for each channel, manual operation with status display (even without bus voltage), contacts (make/break) and participation in central function as continuous on, continuous off, central switching, scenes, storing/recalling scenes, switching functions: on/off, impulse, on/off delay, staircase lighting, logical functions: blocking, AND, releasing, OR.
- Feedback object for each channel
- Central objects with and without priority
- Recalling and storing scenes (object)
- Scene object for each channel
16A/250V cos phi = 1
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 0
Max. switching power (W) : 2000
Max. switching power LED (W) : 600
Output power (W) : 3680
Suitable for C-load : No
Max. number of switching contacts : 4
Max. switching current (A) : 16
Rated current (A) : 16
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : Yes
Bus module detachable : No
Modular expandability : No
Degree of protection (IP) : IP20
