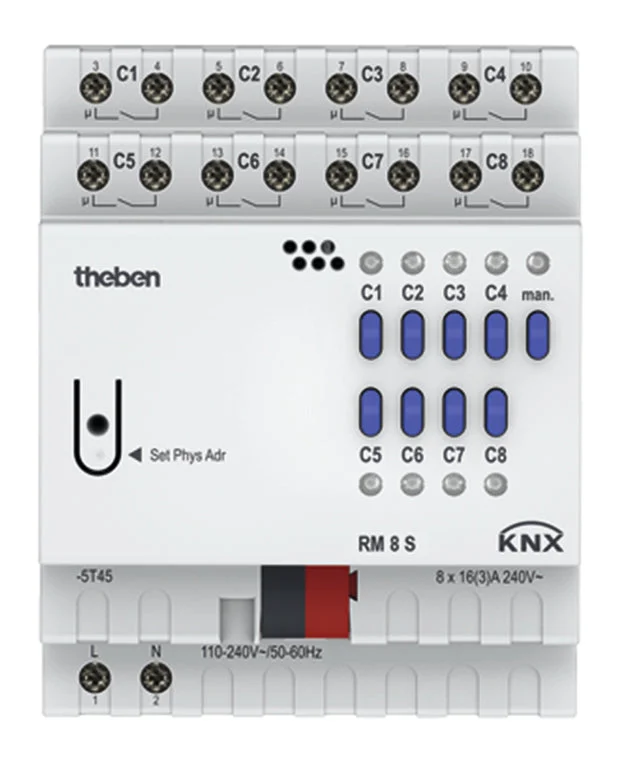

EIB/KNX switch actuator, with relay outputs for 8 switch channels, DIN-rail mounting, width 72 mm, LED switch status display for each channel, manual operation with status display (also without bus voltage), contacts (make/break) and participation in central function as continuously on, continuously off, central switching, scenes, scenes save/call, switch functions: on/off, pulse, on/off delay, stairwell lighting, logical functions: block, AND, release, OR. Feedback object for each channel, central objects with and without priority, call and save scenes (object), scene object for each channel, 16A / 250V cos phi = 1.
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 0
Max. switching power (W) : 2000
Max. switching power LED (W) : 600
Output power (W) : 3680
Suitable for C-load : No
Max. number of switching contacts : 8
Max. switching current (A) : 16
Rated current (A) : 16
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : Yes
Bus module detachable : No
Modular expandability : No
Degree of protection (IP) : IP20
