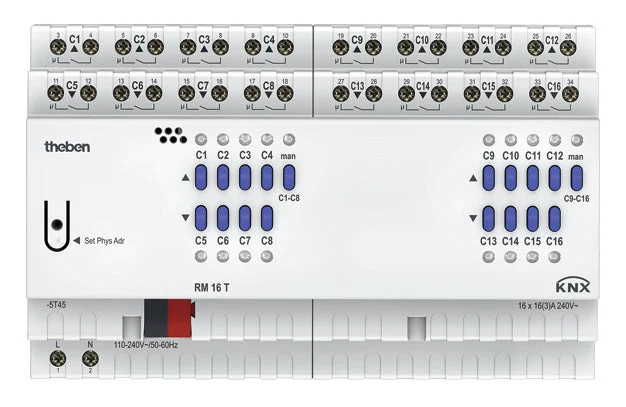

EIB/KNX switch-/blind actuator, basic module, with relay outputs for 16 switch channels or 8 blind channels, DIN-rail mounting, width 145 mm, LED switch state display for each channel, manual operation with status display (also without bus voltage), contacts (make/break) and participation in central function as continuous on, continuous off, central switching, scenes, scenes store/call, switch functions:
- On/off,
- Impulse,
- On/off delay,
- Staircase lighting,
- Logical functions: blocking, AND, releasing, OR.
Feedback object for each channel, central objects with and without priority, scenes call and store (object), scene object for each channel, 16A/250V cos phi = 1
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 8
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 1
Max. switching power LED (W) : 600
Output power (W) : 3680
Suitable for C-load : No
Max. number of switching contacts : 16
Max. switching current (A) : 16
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : Yes
Bus module detachable : No
Modular expandability : No
Degree of protection (IP) : IP20
