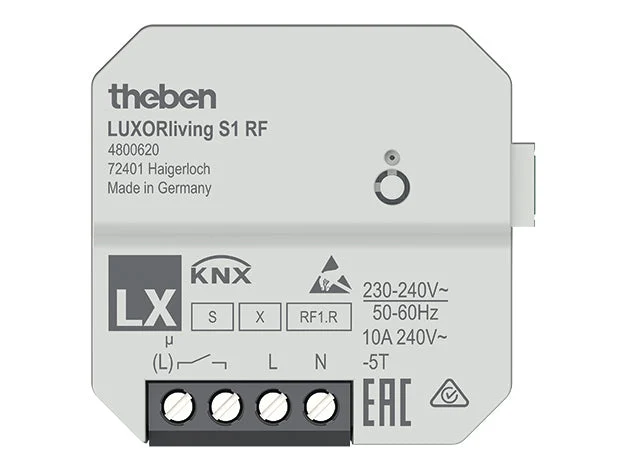

Theben LUXORliving Switch Actuator Bus System – 4800620

Theben LUXORliving RF switching actuator bus system.

Specifications

Bus system KNX : Yes
Bus system KNX radio : Yes
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : Other
Radio frequent bidirectional : Yes
Mounting method : Flush mounted (plaster)
Local operation/hand operation : No
With LED indication : No
Number of digital inputs : 2
Max. switching power (W) : 1800
Output power (W) : 2000
Suitable for C-load : No
Max. number of switching contacts : 1
Max. switching current (A) : 16
Rated current (A) : 10
Rated operating voltage (V) : 230 V to 230 V
Different phases connectable : Yes
With bus connection : Yes
Bus module detachable : No
Min. depth of built-in installation box (mm) : 35
Modular expandability : No
Degree of protection (IP) : IP20
