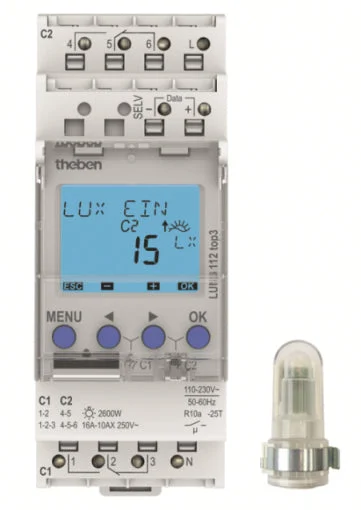

Theben Luna Twilight Switch For DIN-Rail – 1120130

Theben Luna twilight switch for din-rail, mounting type light sensor wall mounted, protection rating (IP) IP20, protection rating (IP) light sensor IP55, protection class light sensor II, width in module units 2, installation depth 69.2mm, adjustment range brightness value 1 – 99000lx.

Specifications

Rated voltage (V) : 230
Rated frequency (Hz) : 50 Hz to 60 Hz
Max. incandescent lamp load (W) : 3600
Max. load fluorescent lamp (VA) : 3600
Max. load fluorescent lamp (Duo circuit) (VA) : 3600
Max. load fluorescent lamp (parallel compensated) (VA) : 1200
Max. switching power LED (W) : 600
Max. switching current (cos phi = 0.6) (A) : 10
Rated switch current (A) : 16
Adjustment range brightness value (lx) : 1 lx to 99000 lx
With programmable overnight shutoff : No
Push button input : No
Max. conductor length light sensor (m) : 100
Protection class light sensor : II
Mounting method light sensor : Wall surface mounted
Mounting method : DIN rail
Width in number of modular spacings : 2
Built-in depth (mm) : 69.2
Degree of protection (IP) : IP20
Degree of protection (IP) light sensor : IP55
