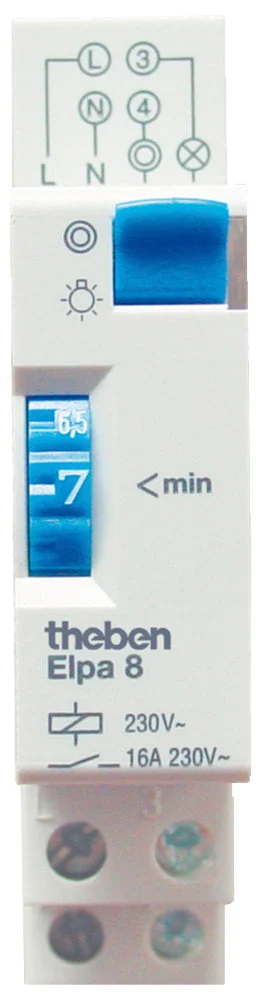

Theben ELPA Staircase Switch – 0080002

Theben ELPA stairwell switch, gray, DIN rail, garbage delay 0.5 – 7min, 1 make contact, width in module units 1, frequency coil voltage 1 50Hz, glow lamp current pressure contact 50mA, mounting depth 60mm, max. Load fluorescent tube 2300VA, max. Load fluorescent tube dual switch 2300VA.

Specifications

Function : Mechanical
Mounting method : DIN rail
Width in number of modular spacings : 1
Built-in depth (mm) : 60
Number of contacts as normally open contact : 1
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Control voltage 1 (V) : 230 V to 230 V
Type of control voltage 1 : AC
Frequency control voltage 1 (Hz) : 50 Hz to 50 Hz
Rated switch current (A) : 16
Max. switching current (cos phi = 0.6) (A) : 10
Release-delay (min) : 0.5 min to 7 min
Push button glow-lamp current (mA) : 50
Wiring system : 3 and 4 wire configuration
Pre-warning of switching-off : None
Current surge function selectable : No
Repetitive : Repetitive
Supply voltage (V) : 207 V to 253 V
Voltage type of supply voltage : AC
Max. incandescent lamp load (W) : 2300
Max. load fluorescent lamp (VA) : 2300
Max. load fluorescent lamp (Duo circuit) (VA) : 2300
Max. load fluorescent lamp (parallel compensated) (VA) : 1300
Max. switching power LED (W) : 300
