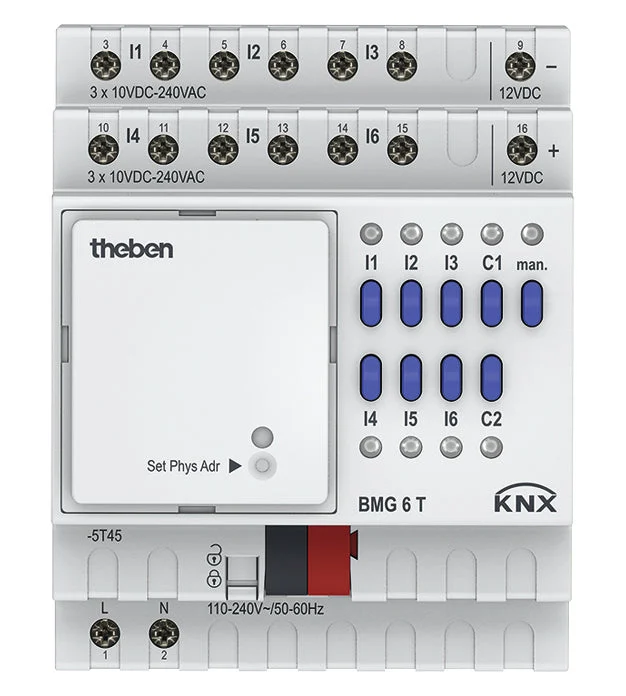

Binary input for 6 channels, base module, expandable with BME 6 T up to a maximum of 18 channels or other MIX expansion modules. Suitable for DIN-rail mounting with a width of 72 mm. It features multi-voltage inputs ranging from 8-250V AC/DC.
The module provides auxiliary voltage for potential free inputs. All inputs can be used with different voltages. An LED display is present for all inputs.
Functions include block object and 2 output objects per channel, with adjustable conditions when returning from bus voltage. The software functions are:
- Switch/push-button
- Dimming
- Blinds
- Encoder
- Counting function
Specifications
Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : Yes
Bus module detachable : Yes
LED controlling : No
With LED indication : Yes
Number of inputs : 6
Input voltage (V) : 8 V to 250 V
Type of voltage (input voltage) : AC/DC
External signal voltage necessary : Yes
Degree of protection (IP) : IP20
