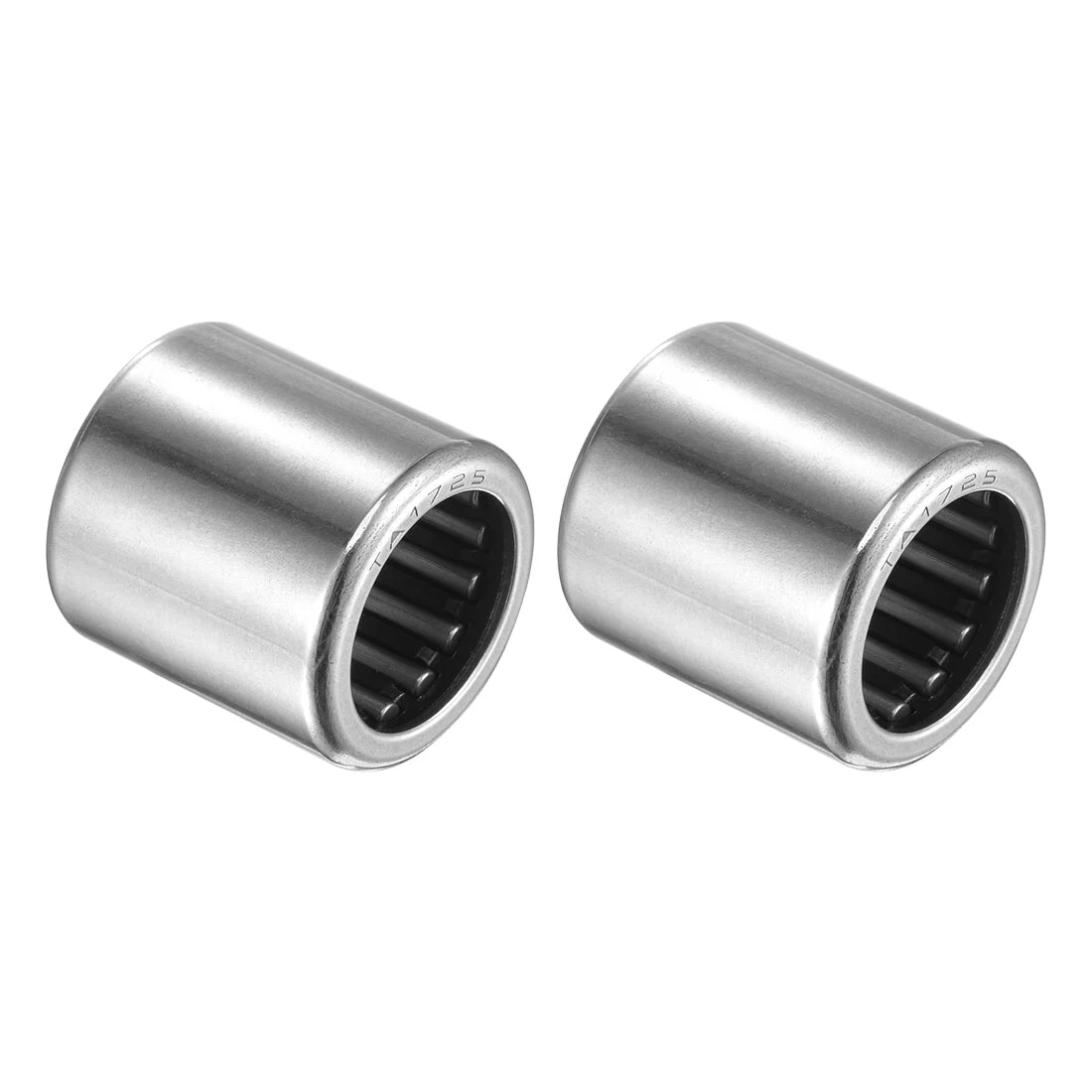

TA1725 Needle Roller Bearings 17mm x 24mm x 25mm Chrome Steel Open End 2pcs

About this item

• [SIZE] – Model: TA1725 (I.D. (Fw)= 17mm, O.D. (D)= 24mm, Width (C)= 25mm)
• [MATERIAL] – Steel Drawn Cup, Steel Cage, Chrome Steel Needle Rollers
• [FEATURES] – The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] – Dynamic Load Rating: 19300N, Static Load Rating: 27400N, Limit Speed: 14000RPM
• [APPLICATIONS] – They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Specification:

Model: TA1725

Drawn Cup Material: Steel

Cage Material: Steel

Needle Roller Material: Chromium Steel (GCr15)

Accuracy: P0

Bore Diameter (Fw): 17mm

Outside Diameter (D): 24mm

Width: 25mm

Limit Speed: 14000RPM

Dynamic Load Rating: 19300N

Static Load Rating: 27400N

Construction : Single Row

Number of Pack: 2 Pcs

Description:

-They are compact bearings with high load carrying capacity and stiffness.

-Suitable for high dynamic loads or radial-limited installation. They are mounted in housings with a tight interference fit.

-Used in a variety of applications such as agricultural and construction equipment, pumps and compressors, and two-stroke engines.

Note: Use a press or special tool (not a hammer) for installation, as run out may cause local deformation or brittle breakage.
