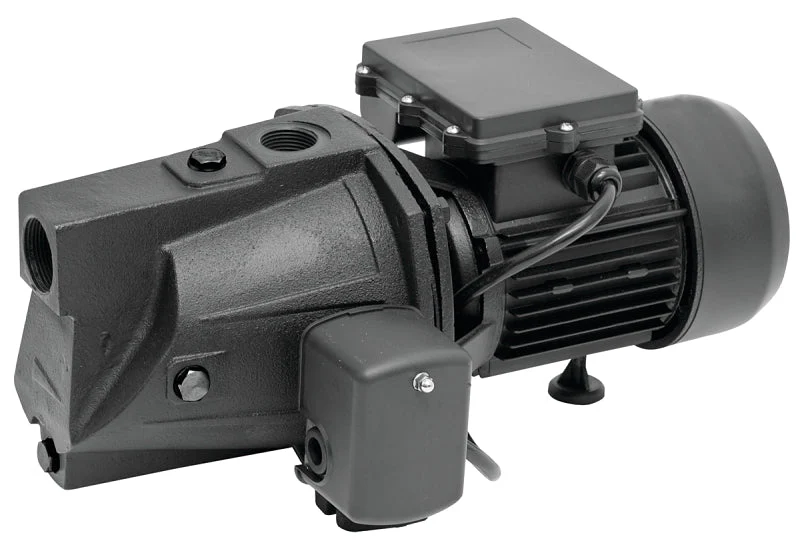

Superior Pump 94505 Jet Pump, 6.4/3.2 A, 115/230 V, 0.5 hp, 1-1/4 in Suction, 1 in Discharge Connection

Rugged cast iron pump body for durability. Tough thermoplastic impeller. Glass filled thermoplastic diffuser. Cast iron seal plate. Pre-mounted, fully adjustable pressure switch. For shallow well applications up to 25 ft depth. 1-1/4 NPT suction, 1 in discharge/drive port, 67 psi maximum pressure, 12.5 gpm flow rate, 1 year warranty from Superior Pump.
Unit: EA
UPC: 725113945054
Model Number: 94505

Features

• Rugged cast iron pump body for durability
• Glass filled thermoplastic diffuser
• Cast iron seal plate
• Pre-mounted, fully adjustable pressure switch

Additional Information

• Connection Size: 1-1/4 in Suction 1 in Discharge
• Connection Type: NPT
• Current Rating: 6.4/3.2 A
• Flow Rate: 12.5 gpm
• Frequency Rating: 60 Hz
• HP Rating: 0.5 hp
• Material: Iron
• Maximum Head: 25 ft
• Motor Type: Fan Cooled
• Pressure Rating: 67 psi
• Voltage Rating: 115/230 V
