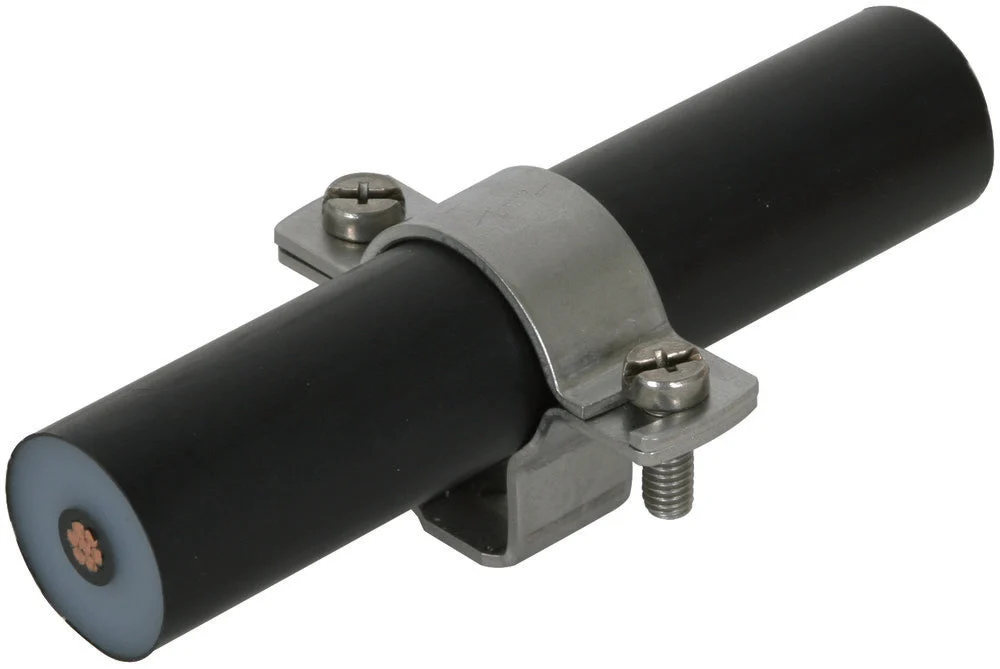

StSt HVI Power Conductor Holder D 27-30mm With Thread M6 – 275241

The Dehn HVI Power Conductor Holder is designed for lightning protection. The conductor’s attachment is facilitated with a screw clamp while the holder can be affixed with a bore using metric threads. The conductor holder’s construction height is 14 mm, and it is suited for a round conductor diameter of 27 mm. The thread size used is metric 6. Both the base and the carrier are made of RVS 304 (V2A) stainless steel. The design supports wall mounting, secured by a simple two-screw cleat mechanism.

Specifications

Mounting type conductor : With screw clamp
Suitable for diameter round conductor (mm) : 27 mm to 27 mm
Material of holder : Stainless steel V2A
Mounting type holder : Bore hole with M thread
Material of carrier : Stainless steel V2A
Material of saddle clamp : Stainless steel V2A
Material base part : Stainless steel V2A
Thread size (metric) : 6
Wall distance (mm) : 14 mm to 14 mm
Assembly height conductor holder (mm) : 14
Suitable for EX-applications : No
