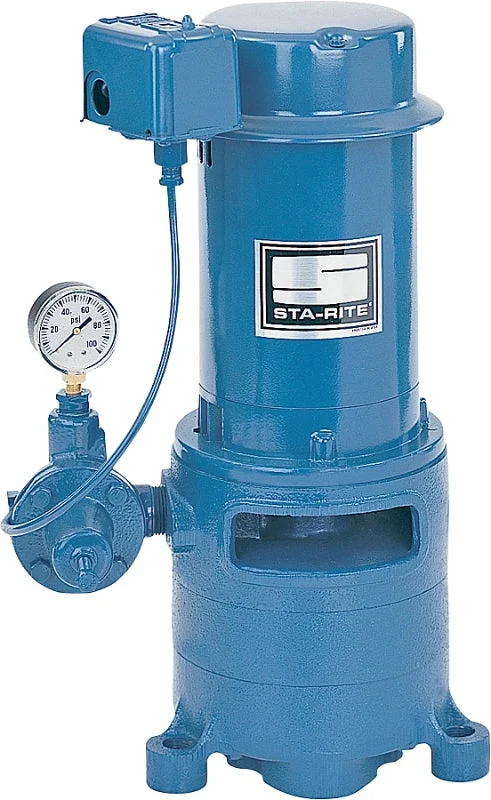

MS design Series deep well jet pumps feature over the well bolt-on capability with a special casing adapter for 2 and 3 in single pipe installations and adapter flanges for adapting all double pipe installations.
Unit: EA
UPC: 022315114104
Model Number: MSE
Features
- Quality construction – precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion
- Automatic pressure regulator – faster-acting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells
- Motor windings – superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life
- Dustproof cover – all electrical components are protected from dirt, dust and insects by a dustproof canopy
- Ventilating air cannot contaminate vital switching components, this eliminates the most common cause of motor failure
Additional Information
- Connection Size: 1-1/4 in Suction 1 in Discharge
- Connection Type: NPT
- Current Rating: 19.2/9.6 A
- Flow Rate: 12.1 gpm
- Frequency Rating: 60 Hz
- HP Rating: 1 hp
- Includes: Pre-Plumbed External Automatic Regulator Pressure Gauge Pressure Switch and Complete Line of Casing Adapters
- Material: Iron
- Maximum Head: 260 ft
- Number of Phases: 1
- Pressure Rating: 60 psi
- Suitable for: Deep Wells
- Voltage Rating: 115/230 V
