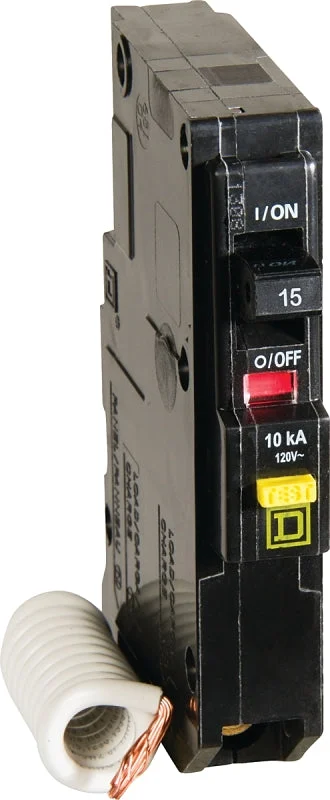

All QO circuit breakers are equipped with the Visi-Trip indicator. When a Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between “OFF” and “ON” and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 60 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders’ and electrical contractors’ first choice in electrical protection.
Unit: EA
MPN: QO115GFICP
UPC: 047569522314
Features
- Shielded copper bus bar
- Available in single and three phase
- Ground bar is included with all main lugs load centers with three mounting locations
- Convertible mains let you meet changing job-site requirements
- Tangential main service knockouts
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-Open circuit breaker protection
- Exclusive Visi-Trip red indicator
- Quick make – quick break mechanism
- Plug-on design, easy to install
Additional Information
- Current Rating: 15 A
- Dimensions: 0.75 in W x 2.91 in D x 4.12 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Number Of Spaces: 1
- Operating Frequency: 50/60 Hz
- Operating Temperature: 104 deg F
- Terminal Type: Pressure Contact
- Trip Type: Fixed
- Type: Mini
- Voltage Rating: 120 V
- Wire Size: 12 to 8 14 to 8 AWG
