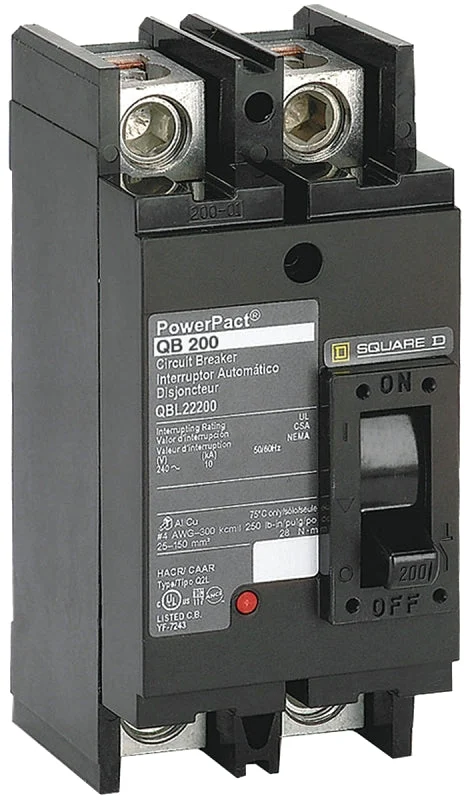

PowerPact Q-frame circuit breakers are used for overcurrent protection and switching on ac systems. They are designed for 240 VAC applications.
Unit: EA
MPN: QBL22200
UPC: 785901412632
Features
- Shielded copper bus bar
- Available in single and three phase
- Ground bar is included with all main lugs load centers with three mounting locations
- Convertible mains let you meet changing job-site requirements
- Tangential main service knockouts
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-Open circuit breaker protection
- Exclusive Visi-Trip red indicator
- Quick make – quick break mechanism
- Plug-on design, easy to install
Additional Information
- Actuator Type: Magnetic Thermal
- Color: Black
- Current Rating: 200 A
- Dimensions: 3.93 in W x 4.5 in D x 6.47 in H
- Enclosure Type: Q-Frame
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 2
- Operating Frequency: 50/60 Hz
- Terminal Type: Lug
- Type: Type QBL
- Voltage Rating: 240 V
- Wire Size: 4 AWG
