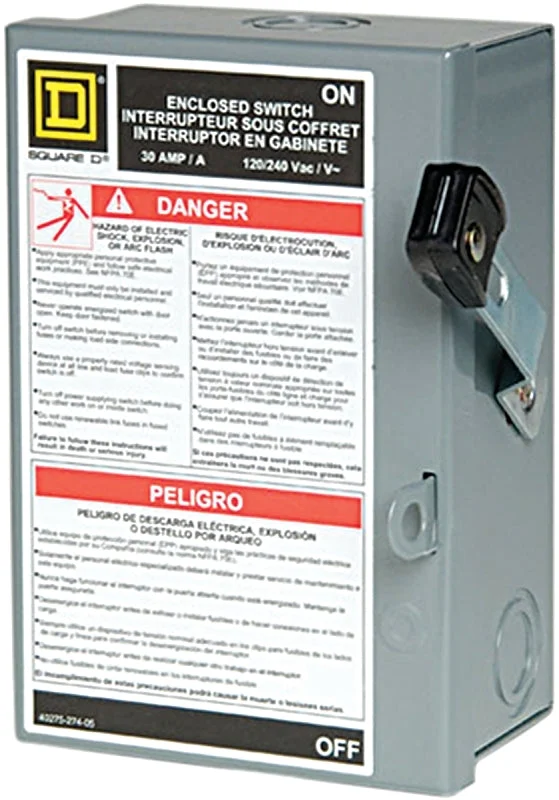

Single phase, 2-pole, 3 wire (2 blades, fuseholders and 1 neutral), 120/240 VAC. Rated 3 hp at 240 VAC, with metallic enclosure. 10,000 AIC (short circuit rating) with class H cartridge fuses. NEMA type 1 enclosure. Terminal lug data: (1) #12 – 6 Al or #14 – 6 Cu. wire. Service ground bar kit PKGTA1 sold separately. Padlock attachment for lock off. UL listed, meets NEMA standard KS1.
Unit: EA
UPC: 785901499022
Model Number: L221N
Features
- The light-duty safety switch has visible blades and a ground lug as standard features
- Available with plug or cartridge fuse holders
- Grounding kit standard
Additional Information
- Contact Configuration: DPST
- Current Rating: 30 A
- Height: 6.5 in
- Includes: (2) Blades and Fuse Holders (1) Solid Neutral
- Mounting Type: Surface
- Nema Rating: NEMA 1
- Number of Poles: 2
- Number Of Wires: 3
- Short Circuit Rating: 10 kA
- Terminal Type: Lug
- Type: Fusible
- Voltage Rating: 240 V
- Width: 5 in
