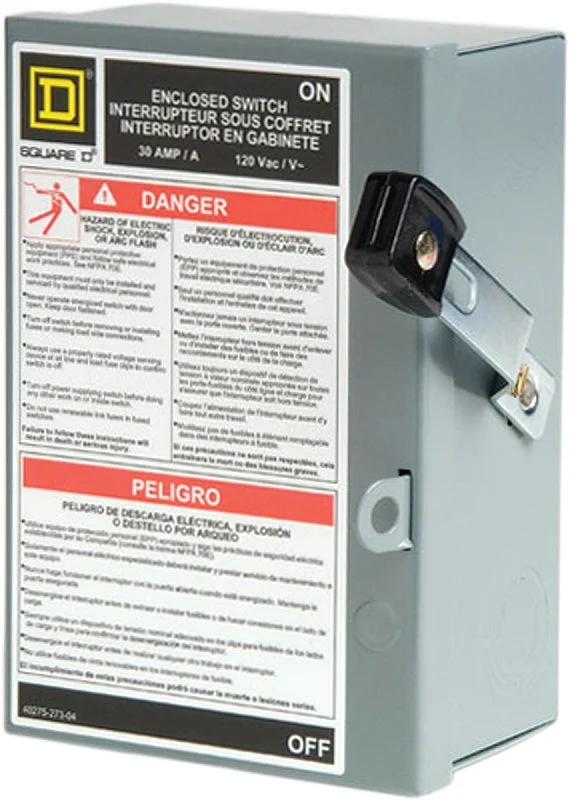

Square D L111N Safety Switch, 1 -Pole, 30 A, 120 V, SPST, Lug Terminal

Single phase, 1-pole, 2-wire, solid neutral, 120/240 VAC. Rated 2 hp at 120 VAC, with metallic enclosure. Typical loads include workshop or hobby room, water heater, furnace, garage or well pump disconnect. 10,000 AIC (short circuit rating) with plug fuses. Padlock attachment for lock off. UL listed, meets NEMA standard KS1. 5 in x 7.63 in x 4 in.
Unit: EA
UPC: 785901115489
Model Number: L111N

Features

• The light-duty safety switch has visible blades and a ground lug as standard features
• Available with plug or cartridge fuse holders
• Grounding kit standard

Additional Information

• Contact Configuration: SPST
• Current Rating: 30 A
• Height: 8.0 in
• Mounting Type: Surface
• Nema Rating: NEMA 1
• Number of Poles: 1
• Number Of Wires: 2
• Short Circuit Rating: 10 kA
• Terminal Type: Lug
• Type: Fusible
• Voltage Rating: 120 V
• Width: 5 in
