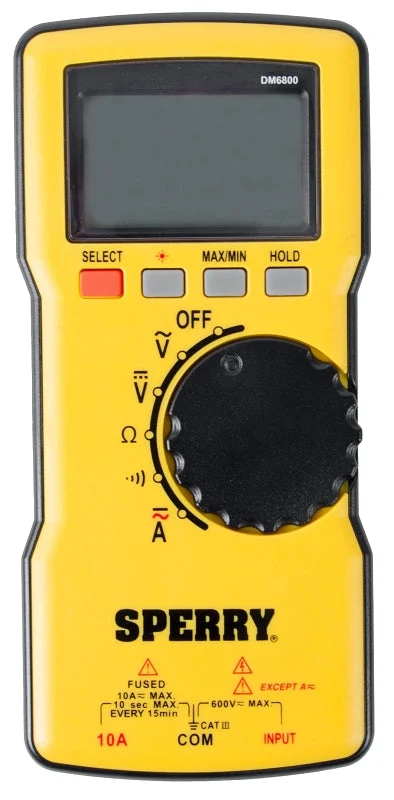

Engineered to exceed the expectations of the professional electrician the Sperry Instruments DM6800 thin digital multimeter offers a durable and ergonomic impact-resistant design manufactured to the latest industry standards. At less than 3/4 in THK, this is the thinnest full sized multimeter yet. Engineered with the ability to test AC/DC voltage, amperage, resistance and continuity. Featuring improved audible and visual indicators and a backlit display. Requires two AAA batteries included in the package and designed with both an auto-off function to save battery life and a low battery indicator to ensure the user does not receive incorrect readings due to a low battery. Unit utilizes auto ranging capabilities that allow the meter to determine the resolution based on the application selected without requiring manual range changes. Capable of testing 600 V AC/DC, this unit also measures AC/DC amps (10 A), resistance (200, 2k, 20k, 200k, 2M, 20 MOhm) and continuity (audible). Durable housing is impact-resistant. Cat III (600 V), cETLus and CE-rated with a limited lifetime warranty to give our users the peace of mind they deserve. Ships with soft case, 40 in Cat II/III 600 V test leads and two AAA batteries included in the package.
Unit: CD 1
UPC: 035632201068
Model Number: DM6800
Features
- This 15 PK of Arrow rivets feature a large flange that provides stronger riveting force, larger supporting surface and additional protection for soft materials, these rivets can be used for indoor and outdoor applications
- Minimize dust while cutting with the optional dust chute, compatible with the DeWALT AirLock system or standard 35 mm dust extractor
- Instant continuity buzzer
- Data hold feature captures reading on the display
- Auto-power off and low battery indicator
- Backlit 1999 count LCD screen
Additional Information
- Accuracy: /-1 VAC /-0.8 VDC /-1.5 AAC /-1.2 ADC /-1 Resistance
- Color: Yellow
- Dimensions: 3.18 in L x 0.68 in W x 6.93 in H
- Display Type: Digital LCD
- Includes: (2) AAA Batteries
- IP Rating: IP20
- Measuring Functions: AC Voltage Current DC Voltage Resistance
- Power Source: Battery
- Power Supply: 2 to 600
- Resistance: 200 Ohm 2 kOhm 20 kOhm 200 kOhm 2M Ohm and 20M Ohm
- Resolution: 1999 Count
- Temperature Rating: 32 to 104
