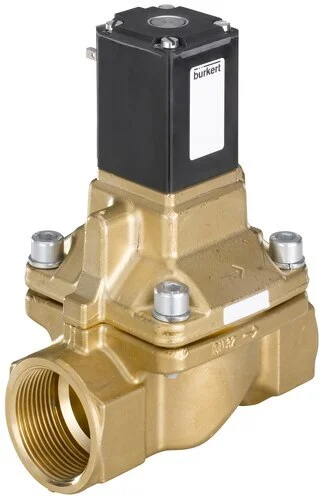

This is a Burkert indirect operating 2/2 way solenoid valve with a 230 V AC/DC coil. The valve has a brass housing with PTFE sealing and an orifice size of mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. The PTFE (polytetrafluoroethene or teflon) sealing, is resistant to almost all media. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.
Pros:
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
Cons:
- Not suited for low pressure differentials (<1 bar). In case of low pressure or a vacuum, consider a (semi-)direct solenoid valve
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert 5404 is an indirect operated solenoid valve, which means that a pressure difference of at least 1 bar is required to open the valve. The 5404 valve features a piston that seals the valve, replacing the common flexible rubber membrane. This robust design allows for high working pressures, in some versions up to 80 bar. The gate sizes range from 1/2 inch to 2 inch. The dimensions of the orifice range from DN 12 to DN 50. A popular application for the 5404 valve is as a relief valve for compressors. Additionally, 5404 valves with ATEX explosion approval are available. Gas and steam versions are available for temperatures up to 160°C, as well as special versions designed for temperatures as low as -40°C.
Please note: this product is made to order and can unfortunately not be returned.
Specifications
Function : Normally closed
Voltage : 230 V AC,230 V DC
Material : Brass
Seal material : Teflon (PTFE)
Operation : Indirect
Recommended for : Water,Air
Min pressure difference (bar) : 1
Max pressure (bar) : 50
Features : High pressure
Min temperature (°C) : -10
Max temperature (°C) : 100
Degree of protection (IP) : IP65
Freq. input voltage (Hz) : 50 Hz to 60 Hz
Valve ports/positions : 2/2 way
Duty cycle : 100%
Max. ambient temp. (°C) : 55
Min. ambient temperature (°C) : -10
Valve construction : Without fluidic body
Valve seat material : Brass
Indirect effect : Yes
