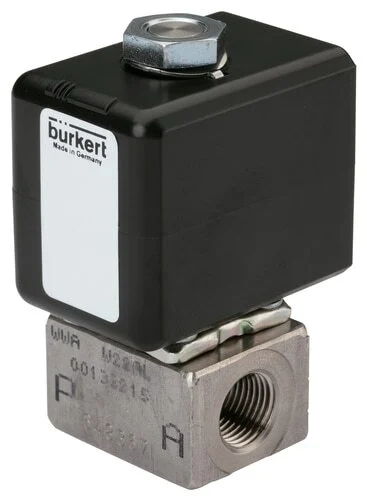

This is a Burkert direct operating 2/2 way solenoid valve with G 1/8 inch threads and a 24 V DC coil. The valve has a stainless steel housing with FKM sealing and an orifice size of 2.4 mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of 0 – 5 bar (73 psi) and a maximum temperature of 100 °C (212 °F). The valve has a Kv-value of 0.13 m3/h, this translates to a flow rate of 2 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0, which means 0 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The FKM (fluorine rubber or Viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.
Pros:
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert type 7011 is a versatile direct-acting plunger valve that can be used in a variety of applications. Its welded stopper and core guide tube enhance pressure resistance and guarantee leak-tightness. The valve is customizable with different housing and seal materials to meet specific needs. The valve’s flange variant (SFB) allows for space-efficient arrangement on a multiple manifold, and it also includes DVGW EN 161 and explosion-proof variants. Flexible hose connections can be made using push-in fittings. When combined with a plug conforming to DIN EN 175301-803 shape B, the valves offer IP65 protection. The type 7011 valve is ideal for small valves up to DN 2.4 due to its compact design and slipped-over coil system. This valve can be easily mounted on a flange or manifold, making it convenient for various systems. Additionally, explosion-proof variants are available for safety requirements.
Please note: this product is made to order and can unfortunately not be returned.
Specifications
Connection size : 1/8 inch
Connection type : Inner thread cylindrical BSPP-G
Function : Normally closed
Voltage : 24 V DC
Material : Stainless steel
Seal material : FKM (FPM)
Operation : Direct
Recommended for : Water,Combustible gases,Lubricant,Fuel,Oil,Strong acids and bases,Dilute acids and bases,Carbon dioxide,Air
Max pressure (bar) : 5
Kv value [m3/h] : 0.13
Valve bore (mm) : 2.4
Min temperature (°C) : -10
Max temperature (°C) : 100
Electrical connection : DIN-B (11mm)
Degree of protection (IP) : IP65
Nominal power (W) : 7
Valve ports/positions : 2/2 way
Duty cycle : 100%
Max. ambient temp. (°C) : 55
Min. ambient temperature (°C) : -10
Actuation : Plunger
Valve construction : Valve complete
Sealing toward outside material : FKM (FPM)
Flow direction : Above seat
