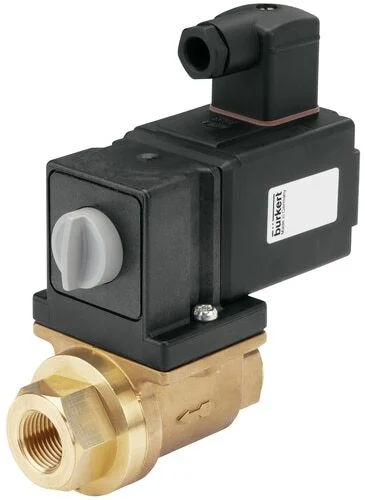

This is a Burkert direct operating 3/2 way solenoid valve with G 3/8 inch threads and a 230 V AC coil. The valve has a brass housing with FKM sealing and an orifice size of 10 mm. The circuit function of the solenoid valve is diverting. The valve inlet port switches between the two outlet ports, based on whether the valve is energized or not. As it is direct operating, no pressure differential over the valve is needed to open the valve. Suitable for a pressure of 0 – 1 bar (15 psi) and a maximum temperature of 130 °C (266 °F). The valve has a Kv-value of 2 m3/h, this translates to a flow rate of 33 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 2, which means 2 GPM @ 1 psi pressure drop. For many applications it is enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator. This model is media separated. This means that the working parts such as the spring are separated from the media by a flexible membrane, which makes it possible to use of slightly contaminated and aggressive media. The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The manual override feature can be used to commission the system. Suitable for vacuum applications. The valve has an IP65 rating if properly connected.
Pros:
- Suitable for vacuum applications
- Aggressive media are possible thanks to the media separated design
- The manual override is ideal for commissioning and in case of power outage
- Good protection against the environment thanks to the IP65 rating
- Solenoid valves open and close very fast compared to many other valve types
Cons:
- Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
- The coil may get hot when energized. A well ventilated environment is recommended
Series:
The Bürkert 0131 valve is a direct-acting toggle valve. Its housing can be made of PVC, brass, or PVDF. The valve is available in sizes with diameters up to DN 25 and can operate from 0 to 3 bar depending on the version. Thanks to the diaphragm-separation between the actuator and the fluid body, aggressive media such as acids and alkaline solutions can also be controlled safely. DC variants offer energy efficiency, which can contribute to a longer life cycle. The valve features a vibration-proof coil system design. An electric position feedback system determines the valve’s state.
Please note: this product is made to order and can unfortunately not be returned.
Specifications
Connection size : 3/8 inch
Connection type : Inner thread cylindrical BSPP-G
Function : Diverting
Voltage : 230 V AC
Material : Brass
Seal material : FKM (FPM)
Operation : Direct
Recommended for : Water,Air,Oil,Fuel,Lubricant
Max pressure (bar) : 1
Features : Manual override,For vacuum,Media separation,Coil material insulation class H,Cable plug in delivery
Valve bore (mm) : 10
Kv value [m3/h] (m³/h) : 2
Min temperature (°C) : -10
Max temperature (°C) : 130
Electrical connection : DIN-A
Degree of protection (IP) : IP65
Nominal power (W) : 16
Valve ports/positions : 3/2 way
Voltage-type : AC
Duty cycle : 100%
Frequency : 50 Hz
Max. ambient temp. (°C) : 50
Peak power (W) : 100
Min. ambient temperature (°C) : -10
Valve construction : Valve complete
QNn value (gas) (l/min) : 2100
Sealing toward outside material : FKM (FPM)
Actuation : Plunger
