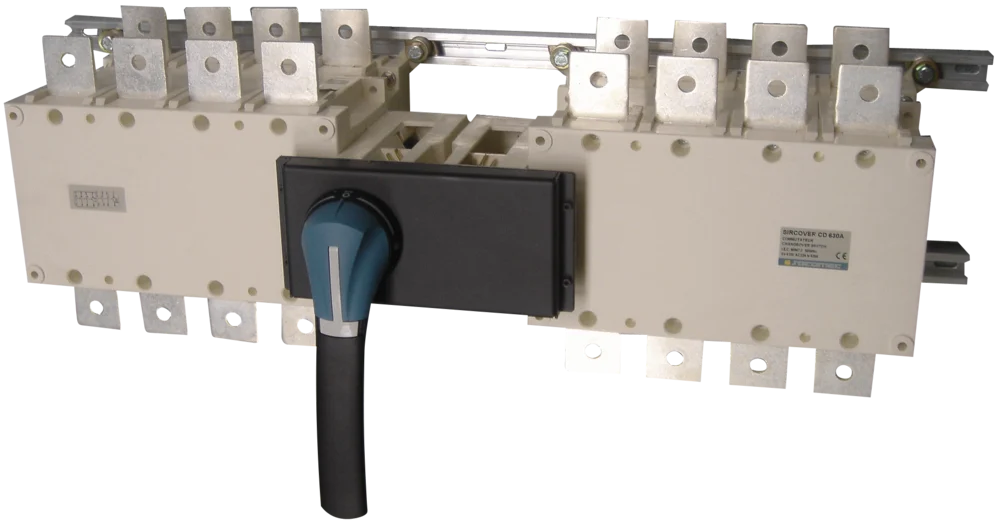

Socomec Disconnector – 41AC4016

Sircover manual changeover switch. Socomec sircover switch disconnectors with positive break indication. Featuring three stable positions that are not affected by voltage drops or vibrations to ensure load protection. Available as 3 or 4 pole devices from 125 a to 3200 a. Director external operation handle options. Stable positions. Easy connection.

Specifications

Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : Yes
Version as emergency stop installation : No
Version as reversing switch : Yes
Number of switches : 2
Max. rated operation voltage Ue AC (V) : 800
Rated operating voltage (V) : 400 V to 690 V
Rated permanent current Iu (A) : 160
Rated permanent current at AC-23, 400 V (A) : 160
Rated permanent current at AC-21, 400 V (A) : 160
Rated short-time withstand current lcw (kA) : 7
Rated operation power at AC-23, 400 V (kW) : 80
Switching power at 400 V (kW) : 80
Conditioned rated short-circuit current Iq (kA) : 100
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : Yes
Color control element : Black
Type of control element : Door coupling rotary drive
Interlockable : Yes
Type of electrical connection of main circuit : Bolt connection
Degree of protection (IP), front side : IP20
