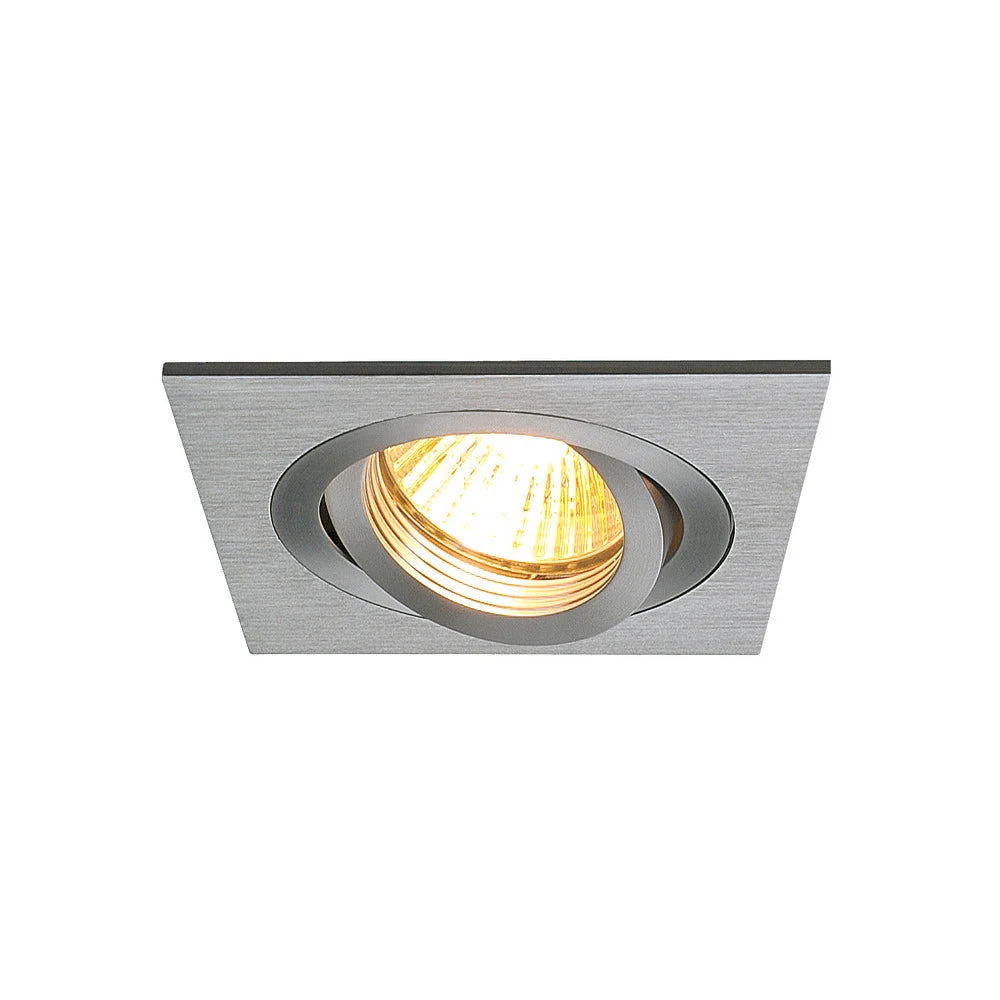

The square, high-voltage version of our popular NEW TRIA recessed fitting series is available in black, white or brushed aluminium housings.
The substantial rotation and pivoting range of this recessed spot ensures the ability to individually focus its light beam, regardless of whether you opt to use halogen or LED retrofit lamps.
The installation is conducted using the factory-installed spring clips.
The NEW TRIA 1 recessed fitting is supplied ready for direct connection to the 230V alternating current.
Specifications
Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : Yes
Suitable for low voltage cable system : No
Adjustability : Rotating and swivelling
With movement sensor : No
With light sensor : No
Lamp type : LED exchangeable
With light source : No
Suitable for number of lamps : 1
Lamp holder : GU10
Material : Aluminum
Surface protection : Lacquered
Color housing : Aluminum
Material cover : None
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
Type of control gear : Not required
With control gear : No
Exchangeable control gear : No
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : Yes
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
Reflector : Other
Light distributor : Other
Light sharing : Symmetric
Light outlet : Direct
Energy efficiency class : A++
Constant light output (CLO) : No
Degree of protection (IP) : IP20
Protection class : II
Suitable for lamp power (W) : 50 W to 50 W
Max. system power (W) : 50
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Width (mm) : 90
Height/depth (mm) : 110
Length (mm) : 90
Built-in width (mm) : 78
Built-in height/depth (mm) : 125
Built-in length (mm) : 78
Built-in diameter (mm) : 78 mm to 78 mm
Type of wiring : Ending
Connectable conductor cross section (mm²) : 2.5 mm² to 2.5 mm²
Connection type : Other
Luminaire with limited surface temperature, sign “D“ : No
Emergency power supply integrated : No
Suitable for workplace according to EN 12464-1 : No
IFTTT support available : No
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
