About this item

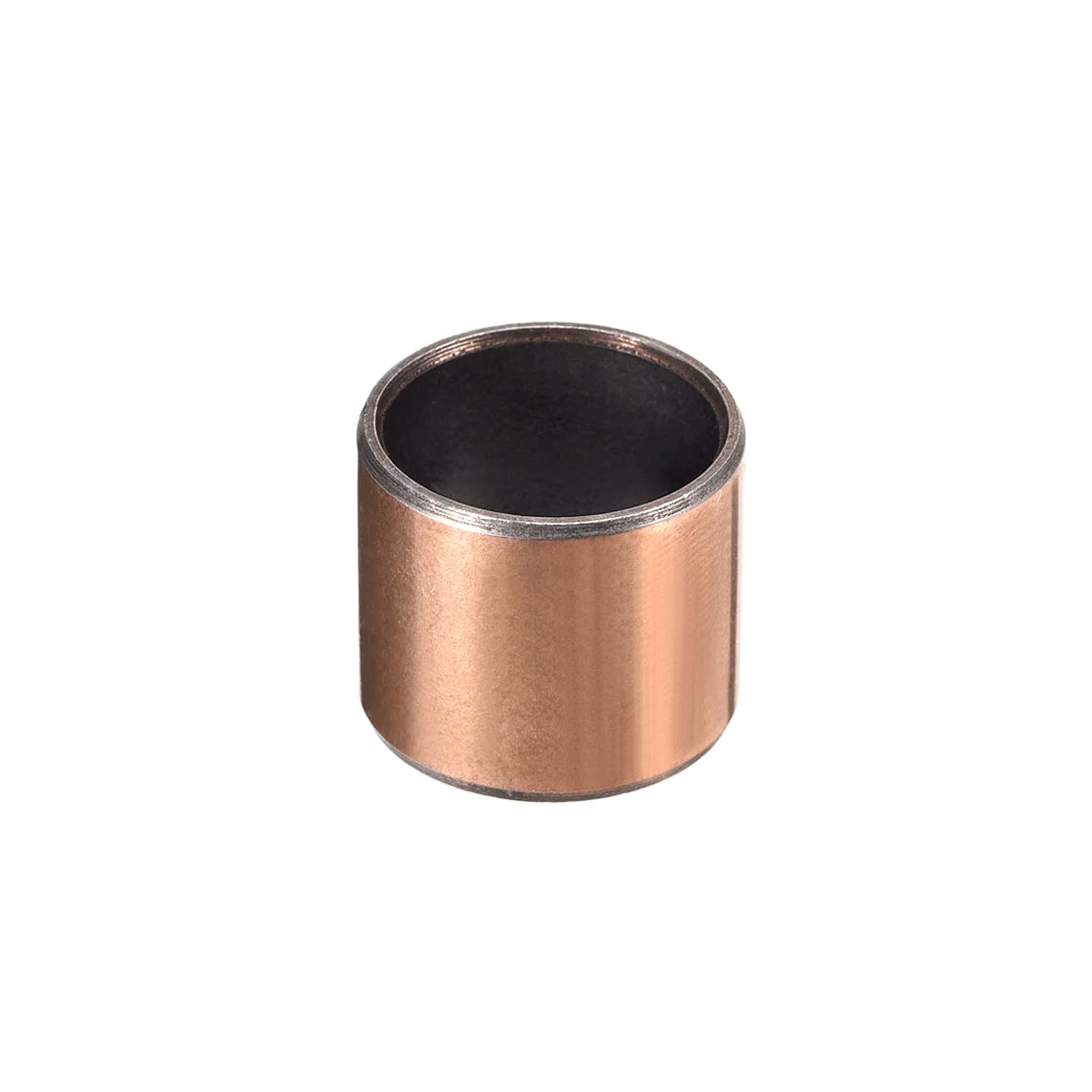

- Bore: 3/4″, Outside Diameter: 7/8″, Length: 3/4″
- Oilless, maintenance-free, good frictional property
- Carbon steel base with Bronze Sintered and composite coating. Suitable for sliding movements
- Featured with good load capacity and wear resistance performance
- Wide application such as textile machine, printing machine, hydraulic loader, fitness equipment and agricultural machinery
Description:
- Plain Bearings are constructed with carbon steel as base, sintered porous bronze as its interlayer, rolled with PTFE and Lead compound as inner surface, and copper-plated on the outer surface.
- Wrapped Bushing is self-lubricating. It offers good frictional property, wear resistance and low noise.
- Solid friction Oilless Bushing can operating during wide temperature rang. Suitable for applications with sliding movements.
- Oilless Sleeve Bearings are most suitable for place where self-lubricating properties of the material are required.
- Note: Split Line can not be used for bearing.
Specification:
Material: Carbon Steel Base with Porous Bronze Sintered
Finish: PTFE and Lead Rolling, Copper Plating
Friction Factor (Dry Friction): 0.04-0.2
Friction Factor (Oil Lubrication): 0.02-0.07
Bore Diameter: 3/4″ / 19.05mm
Outside Diameter: 7/8″ / 22.225mm
Length:3/4″ / 19.05mm
Number of Item: 1 Pack
