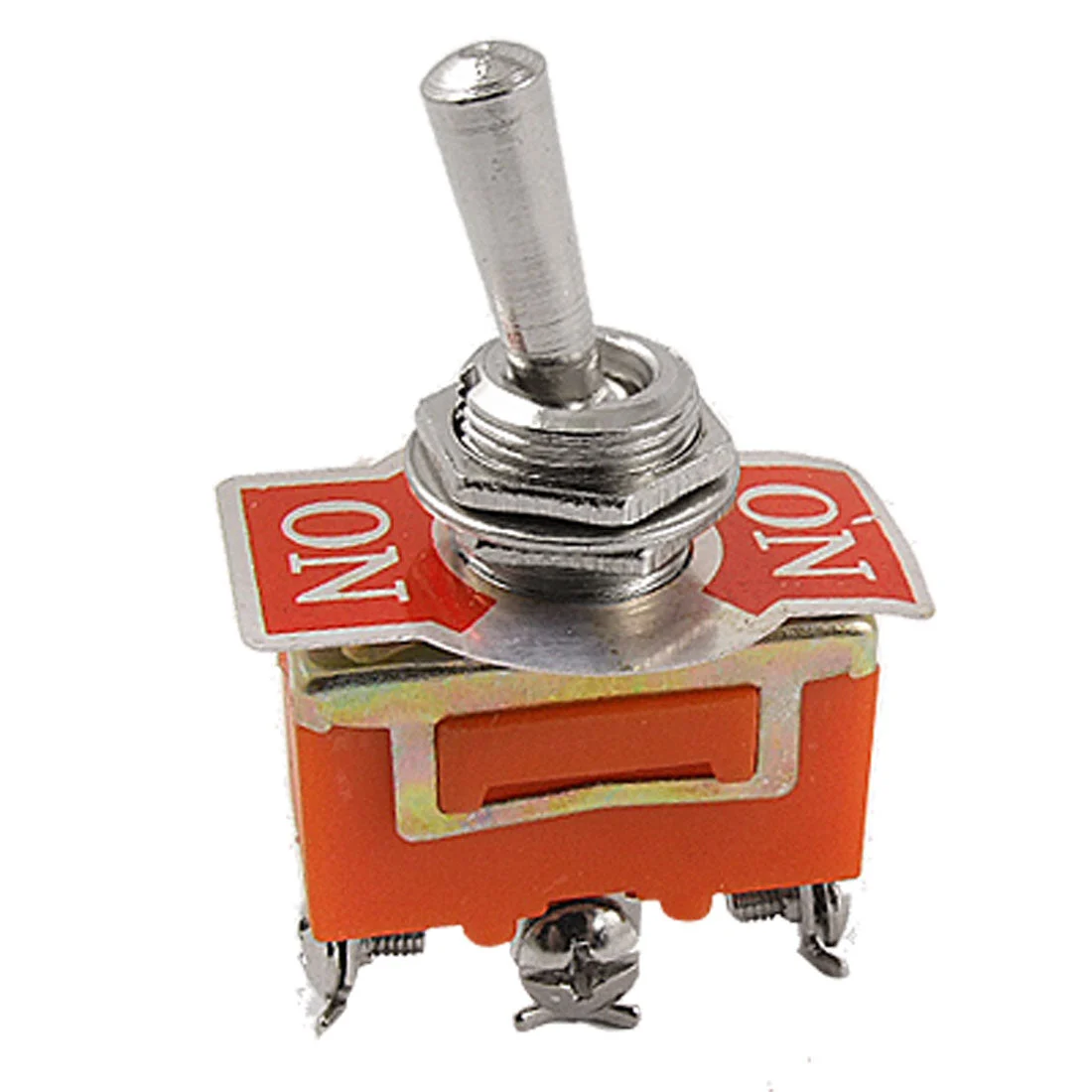

Single Pole Dual Throw ON/ON 2 Position Toggle Switch AC 250V 15Amp

About this item

• Product Name : Toggle Switch;Pin Number : 3 Terminals
• Position : 2 Position(On/On);Type : SPDT(Latching)
• Mounting Diameter : 11.8mm;Total Size(Approx) : 2.9 x 1.4 x 5.5cm/ 1.1″ x 0.5″ x 2.2″ (L * W * H)
• Material : Plastic & Metal;Color : Orange & Silver Tone
• Weight : 25g;Package Content : 1 x Toggle Switch

Please note:

The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types:

Max Power Rating for AC Resisitive load:AC 15A 250V / AC 16A 125V
Max Power Rating for DC Resisitive load:DC 0.5A 250V / DC 0.9A 125V
Max Power Rating for AC Lamp: AC 125V 300W / AC 250V 600W
Max Power Rating for DC Lamp: DC 30V 3.5A
Max Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
