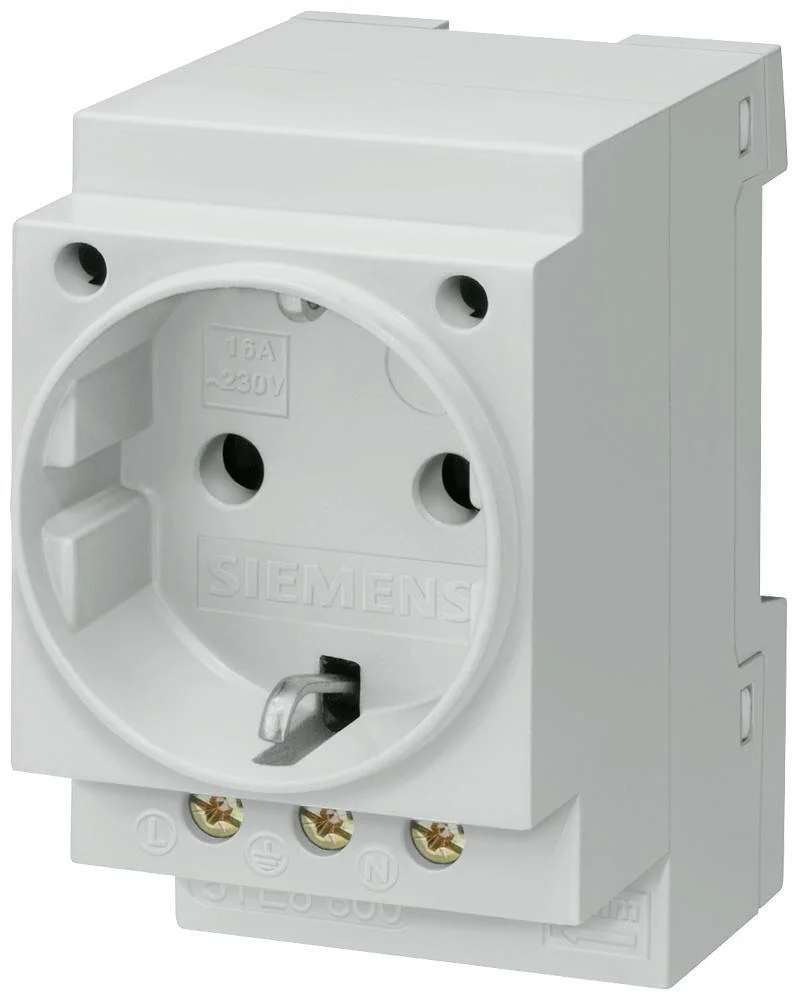

Siemens Wall Outlet (WCD Switchgear) (European Socket) – 5TE6800

Siemens 5te6 series. Siemens 5te6 series of schuko 16a sockets designed for installation in distribution boards and on standard din rail. Note. In distribution boards with 55 mm mounting depth, the socket outlet can only be used without the hinged lid. The lids can be retrofitted on all devices. Siemens distribution boards & accessories. Type b characteristic offers instantaneous short circuit response level of 3-5 x normal rated current, making it suitable for circuits with moderate inrush currents such as filament lamps, heating loads and most domestic/small building protection applications.

Specifications

Protective contact : Yes
Number of units : 1
Number of socket outlets switchable : 0
Imprint/indication : Other
Connection type : Screwed terminal
With hinged lid : No
With enhanced contact protection : No
Label space/information surface : No
RAL-number (similar) : 9010
Transparent : No
Lockable : No
Eject-mechanism : No
Insulated mounting : No
With function lighting : No
With orientation lighting : No
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : No special power supply
Mounting method : Built-in installation
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Other
Surface finishing : Matt
With loop through function : Yes
Rotated central insert : No
Nominal current (A) : 16
Width of device (mm) : 44
Height of device (mm) : 58
Depth of device (mm) : 75
