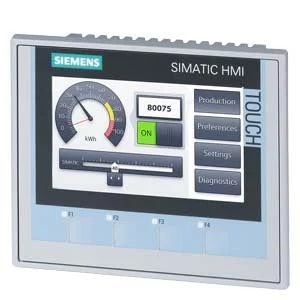

SIMATIC HMI KTP400 Comfort, Comfort Panel, key/touch operation, 4″ widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11.
Specifications
Supply voltage DC (V) : 19.2 V to 28.8 V
Voltage type of supply voltage : DC
Number of HW-interfaces industrial Ethernet : 1
Number of interfaces PROFINET : 1
Number of HW-interfaces RS-232 : 0
Number of HW-interfaces RS-422 : 1
Number of HW-interfaces RS-485 : 1
Number of HW-interfaces serial TTY : 0
Number of HW-interfaces USB : 1
Number of HW-interfaces parallel : 0
Number of HW-interfaces Wireless : 0
Number of HW-interfaces other : 0
With SW interfaces : No
Supporting protocol for TCP/IP : Yes
Supporting protocol for PROFIBUS : Yes
Supporting protocol for CAN : No
Supporting protocol for INTERBUS : No
Supporting protocol for ASI : No
Supporting protocol for KNX : No
Supporting protocol for Modbus : Yes
Supporting protocol for Data-Highway : No
Supporting protocol for DeviceNet : No
Supporting protocol for SUCONET : No
Supporting protocol for LON : No
Supporting protocol for PROFINET IO : Yes
Supporting protocol for PROFINET CBA : No
Supporting protocol for SERCOS : No
Supporting protocol for Foundation Fieldbus : No
Supporting protocol for EtherNet/IP : Yes
Supporting protocol for AS-Interface Safety at Work : No
Supporting protocol for DeviceNet Safety : No
Supporting protocol for INTERBUS-Safety : No
Supporting protocol for PROFIsafe : No
Supporting protocol for SafetyBUS p : No
Supporting protocol for other bus systems : Yes
Radio standard Bluetooth : No
Radio standard Wi-Fi 802.11 : No
Radio standard GPRS : No
Radio standard GSM : No
Radio standard UMTS : No
IO link master : No
Type of display : TFT
With color display : Yes
Number of colors of the display : 16777216
Number of grey-scales/blue-scales of display : 0
Screen diagonal (inch) : 4.3
Number of pixels, horizontal : 480
Number of pixels, vertical : 272
With numeric keyboard : Yes
With alpha numeric keyboard : Yes
Number of function buttons, programmable : 4
With message indication : Yes
With recipes : Yes
Number of password levels : 50
With printer output : Yes
Number of online languages : 32
Additional software components, loadable : Yes
Degree of protection (IP), front side : IP65
Rail mounting possible : No
Wall mounting/direct mounting : No
Suitable for safety functions : No
Width of the front (mm) : 140
Height of the front (mm) : 116
