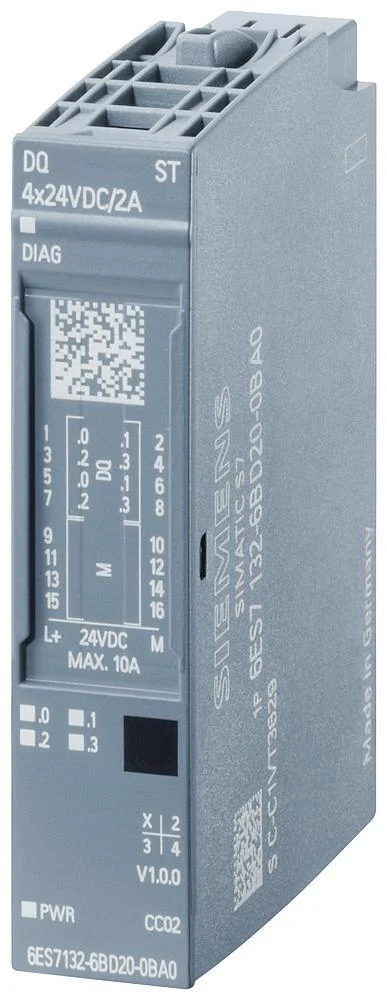

SIMATIC ET 200SP is a digital output module, DQ 4x 24VDC/2A Standard, suitable for BU type A0. It has a color code CC02 and offers module diagnostics. The multifunctional and distributed I/O system provided by Siemens can be commissioned very simply due to its space-saving design. It is approved for degree of protection IP20 and can be installed in a compact control box.
The system ensures maximum flexibility as you can quickly and easily replace modules at any time due to the multi hot swapping feature. SIMATIC ET 200SP also offers a wide range of different and fast communication methods. With the integrated MultiFieldbus interface module IM155-6MF, you can flexibly use the optimum protocol for your application at any time. This function supports multiple Ethernet protocols.
Installation and service are simplified by a standardized identification system based on equipment labeling plates and color-coded connector assignments. Siemens guarantees a future-proof investment with the integration of innovative and long-life automation products. As industry experts, they are already using tomorrow’s technologies and thus redefining market standards.
Consistent data availability, flexible use cases, and versatile integration options ensure optimum performance of ET 200 products. The scalable, cost-optimized configuration of an ET 200SP station is ensured by the wide range of signal modules. In addition to digital and analog input and output modules, respective fail-safe variants are also available for applications up to SIL 3 / PLe. This also applies to the integrated motor starters, which are suitable for motors up to 5.5 kW.
Energy Meters for measuring and analyzing the energy consumption, IO-Link master (V1.1.), and many other communication and technology modules allow the system to be adapted to any automation task. The accessories available for the ET 200SP range from color-coding plates and equipment labeling plates to labeling strips for the individual modules, ensuring maximum manageability in the control cabinet.
Specifications
Supply voltage DC (V) : 19.2 V to 28.8 V
Voltage type of supply voltage : DC
Number of digital inputs : 0
Number of digital outputs : 4
Digital inputs configurable : Yes
Digital outputs configurable : Yes
Type of voltage (input voltage) : DC
Type of digital output : Other
Output current (A) : 2
Permitted voltage at output (V) : 19.2 V to 28.8 V
Type of output voltage : DC
Short-circuit protection, outputs available : Yes
Number of HW-interfaces industrial Ethernet : 0
Number of interfaces PROFINET : 0
Number of HW-interfaces RS-232 : 0
Number of HW-interfaces RS-422 : 0
Number of HW-interfaces RS-485 : 0
Number of HW-interfaces serial TTY : 0
Number of HW-interfaces parallel : 0
Number of HW-interfaces Wireless : 0
Number of HW-interfaces USB : 0
Number of HW-interfaces other : 0
With optical interface : No
Supporting protocol for TCP/IP : No
Supporting protocol for PROFIBUS : No
Supporting protocol for CAN : No
Supporting protocol for INTERBUS : No
Supporting protocol for ASI : No
Supporting protocol for KNX : No
Supporting protocol for Modbus : No
Supporting protocol for Data-Highway : No
Supporting protocol for DeviceNet : No
Supporting protocol for SUCONET : No
Supporting protocol for LON : No
Supporting protocol for PROFINET IO : No
Supporting protocol for PROFINET CBA : No
Supporting protocol for SERCOS : No
Supporting protocol for Foundation Fieldbus : No
Supporting protocol for EtherNet/IP : No
Supporting protocol for AS-Interface Safety at Work : No
Supporting protocol for DeviceNet Safety : No
Supporting protocol for INTERBUS-Safety : No
Supporting protocol for PROFIsafe : No
Supporting protocol for SafetyBUS p : No
Supporting protocol for other bus systems : No
Radio standard Bluetooth : No
Radio standard Wi-Fi 802.11 : No
Radio standard GPRS : No
Radio standard GSM : No
Radio standard UMTS : No
IO link master : No
System accessory : Yes
Degree of protection (IP) : IP20
Time delay at signal exchange (ms) : 0.05 ms to 0.1 ms
Fieldbus connection over separate bus coupler possible : Yes
Rail mounting possible : Yes
Wall mounting/direct mounting : No
Front built-in possible : No
Rack-assembly possible : No
Suitable for safety functions : No
Performance level (EN ISO 13849-1) : Level d
Appendant operation agent (Ex ia) : No
Appendant operation agent (Ex ib) : No
Explosion safety gas : ATEX gas-ex-protection, Cat. 3G
Explosion safety dust : None
Width (mm) : 15
Height (mm) : 73
Depth (mm) : 58
