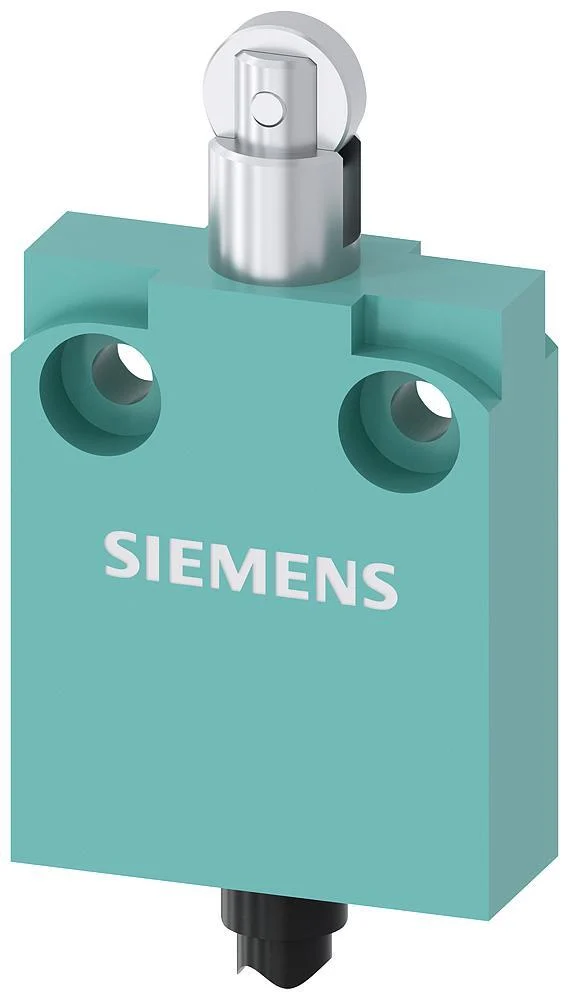

Position switch in compact design 40 mm wide with connection cable 2 m Snap-action contacts 1 NO+1 NC with roller plunger.
Specifications
Width sensor (mm) : 40
Height of sensor (mm) : 16
Length of sensor (mm) : 70
Rated operation current Ie at AC-15, 125 V (A) : 6
Rated operation current Ie at AC-15, 230 V (A) : 3
Rated operation current Ie at DC-13, 125 V (A) : 0.55
Rated operation current Ie at DC-13, 230 V (A) : 0.27
Switching function : Quick-break switch
Switching function latching : No
Output electronic : No
Forced opening : Yes
Number of safety auxiliary contacts : 1
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Number of contacts as change-over contact : 0
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Metal
Coating housing : Lacquered
Type of control element : Roller cam
Alignment of the control element : Roller cam straight
Electrical connection : Other
Status indication : No
Suitable for safety functions : Yes
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 85 °C
Degree of protection (IP) : IP67
