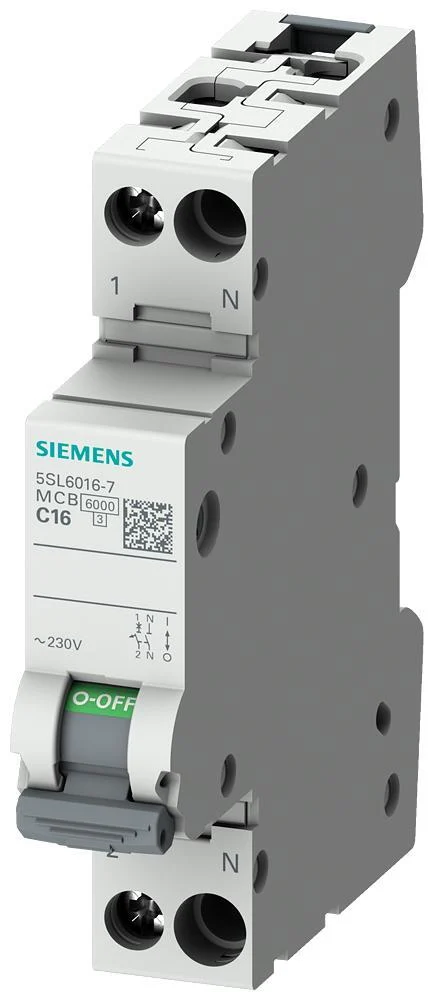

The siemens miniature circuit breaker safely cut off the connected circuit and reliably protect electrical installations and equipment from damage. The devices have a uniform design and, with the appropriate accessories, can be expanded by many additional functions. It is use for industry, buildings or infrastructure. Communication and measuring capable miniature circuit breakers. The siemens circuit breaker 230v 6ka, 1+n-pole/1mw b13.
Specifications
Built-in depth (mm) : 70
Release characteristic : C
Number of poles (total) : 2
Number of protected poles : 1
Rated current (A) : 16
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 250
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 6
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 6
Frequency (Hz) : 50 Hz to 50 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Pollution degree : 2
Additional equipment possible : Yes
Width in number of modular spacings : 1
Ambient temperature during operating (°C) : -25 °C to 60 °C
Connectable conductor cross section multi-wired (mm²) : 0.75 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 0.75 mm² to 16 mm²
Explosion-proof : No
